LED ADR ECE-R23 work light 6591lm | 9-30v | 400cm cable
ECE ADR
TRALERT®

LED ADR ECE-R23 work light 6591lm | 9-30v | 400cm cable

Artikelcode: WR-4065V-4MEAN: 8720364583088
VrachtwagenAanhangerBedrijfswagenAanhanger (klein)TractorGraafmachine4x4

€ 62,00

Prijs incl. btw · € 51,24 prijs excl. btw

In nabestelling

Beschikbaar in nabestelling — doorgaans 7–14 werkdagen

+ verzending vanaf € 7,50 · gratis vanaf € 350,00

Europese voorraad
Technisch advies
14 dagen retour
Korting vanaf 10 stuks

Doosvoordeel

Bestel een complete doos van dit product en bespaar direct.

Geldt per identiek artikel — kies dezelfde SKU. Doos direct vanuit voorraad geleverd.

Omschrijving

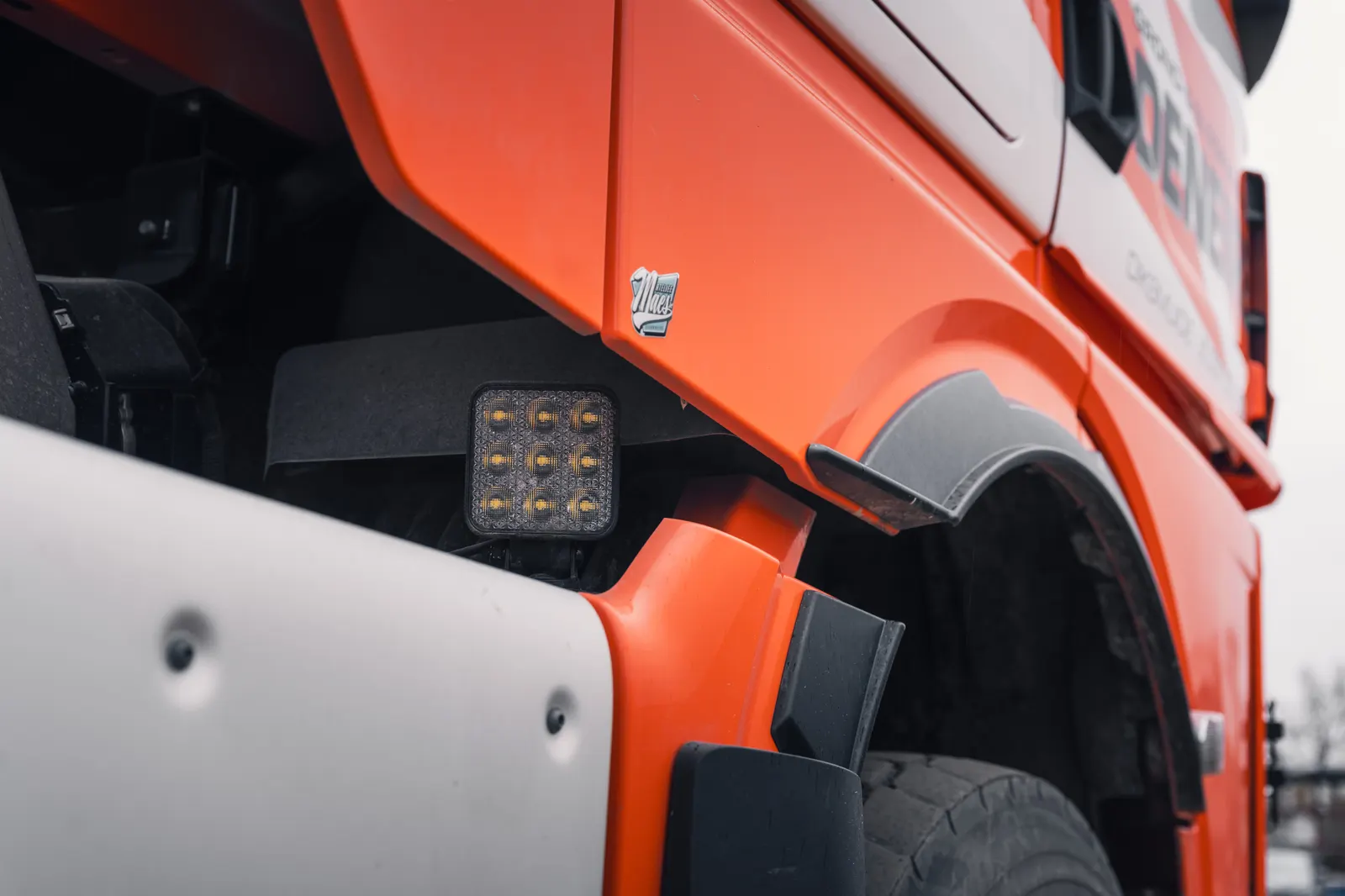

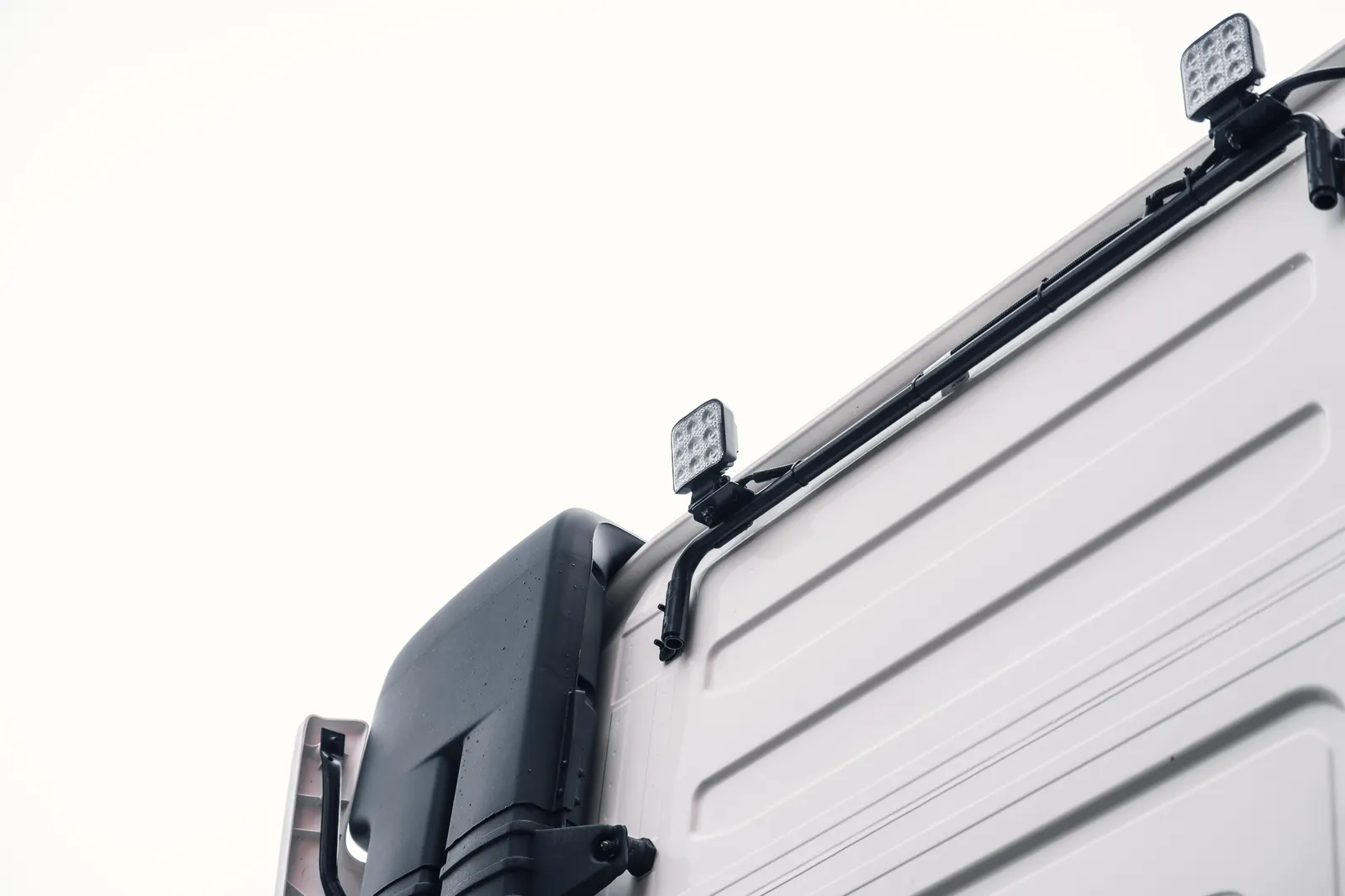

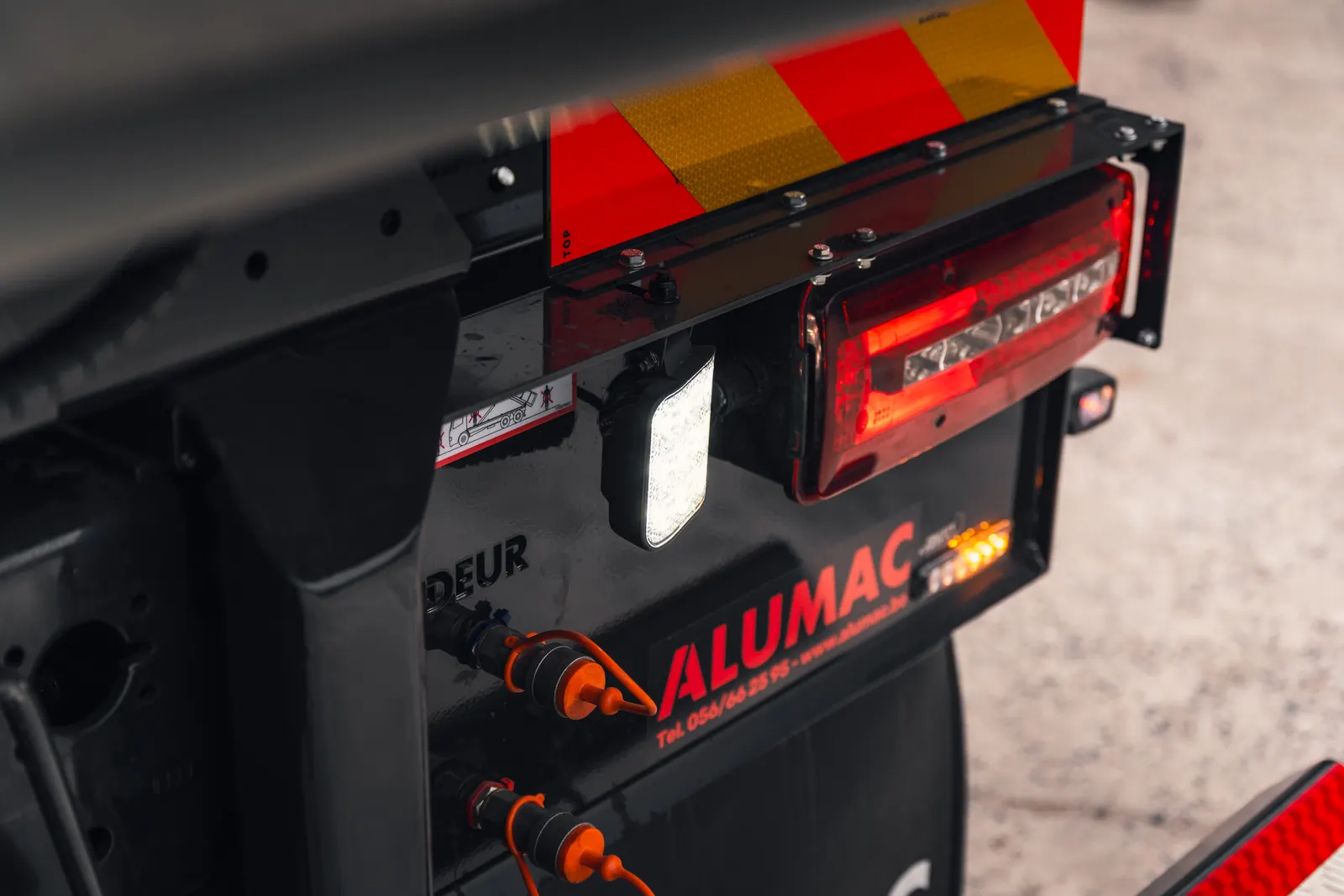

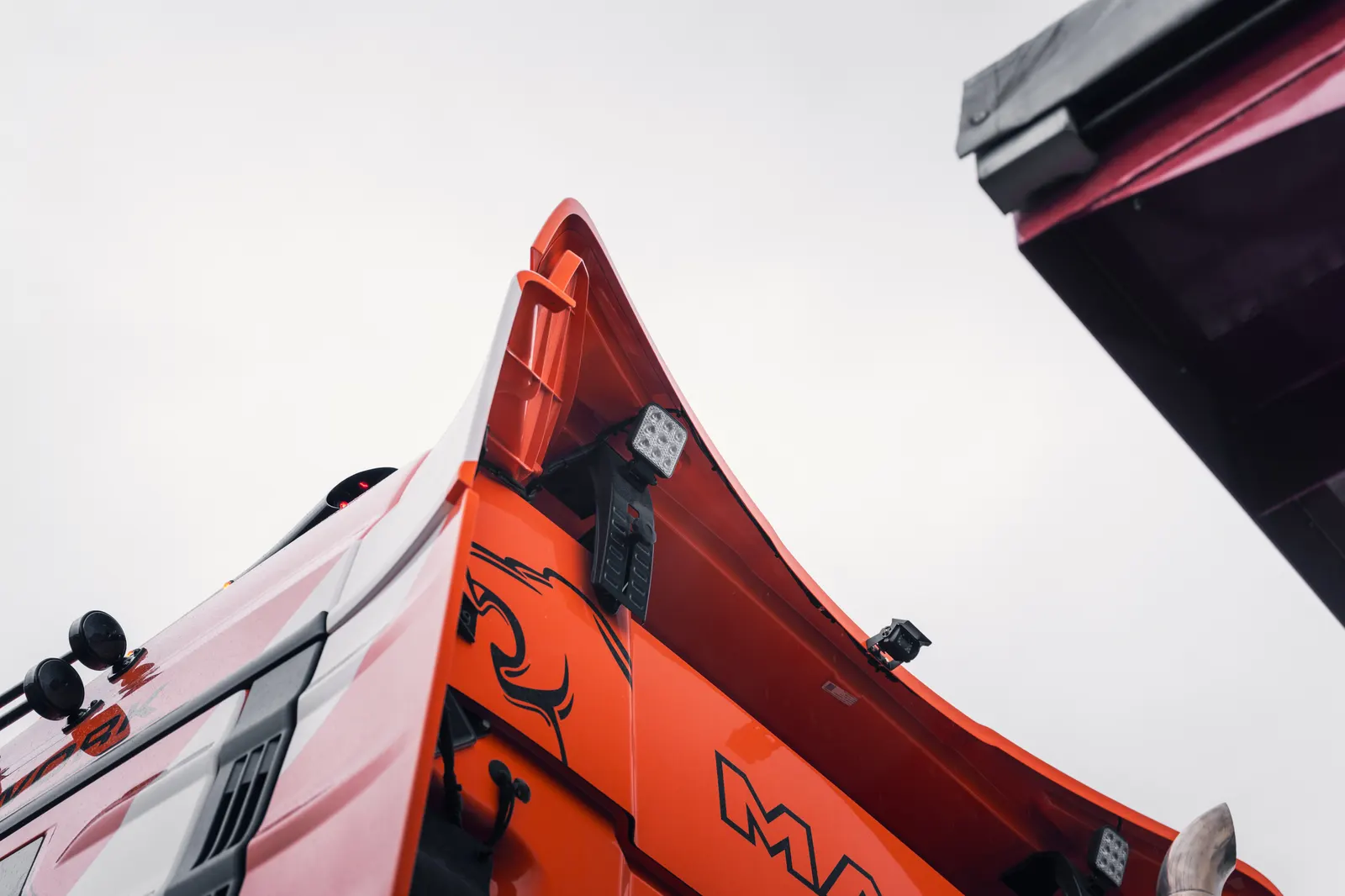

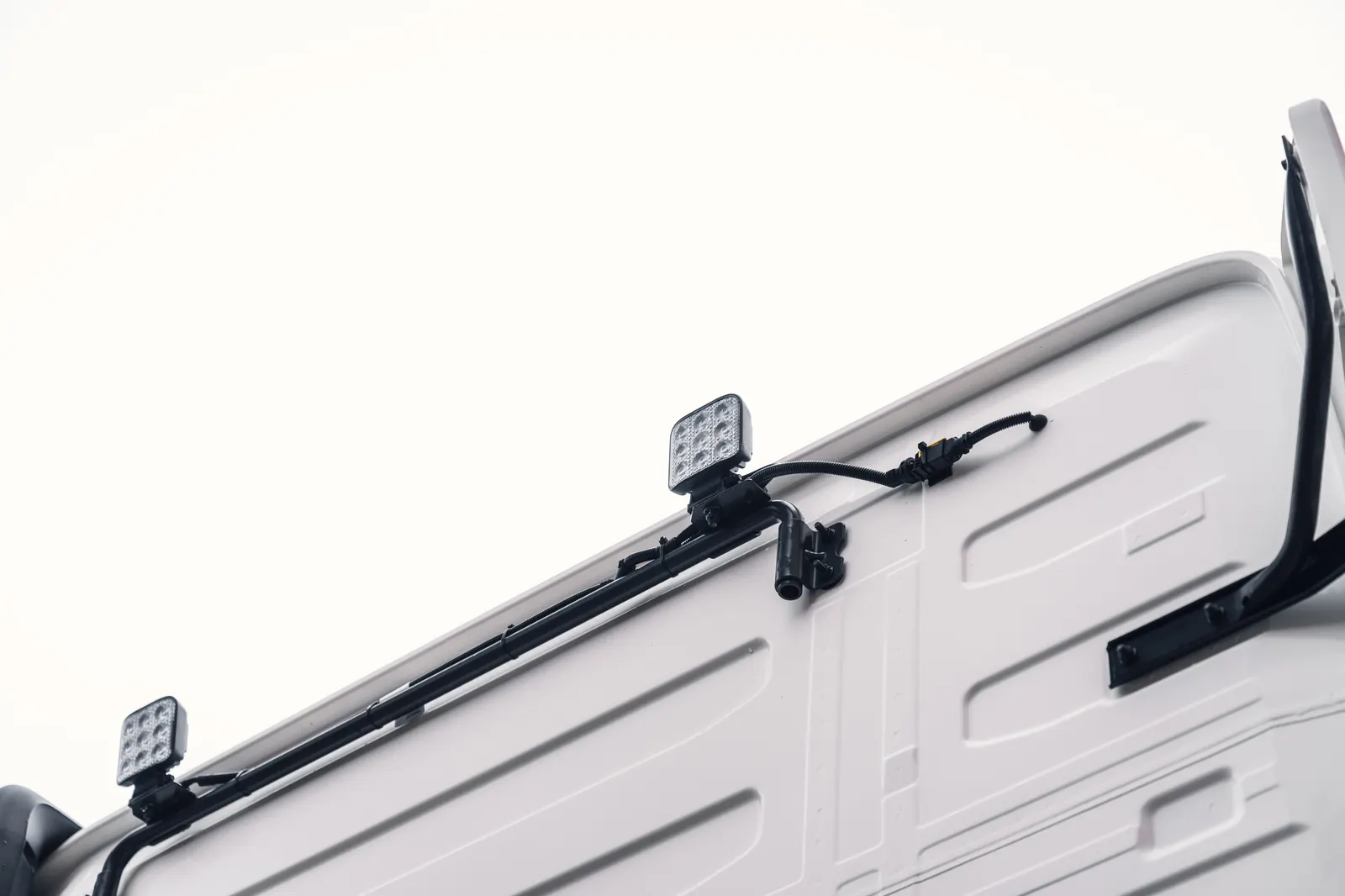

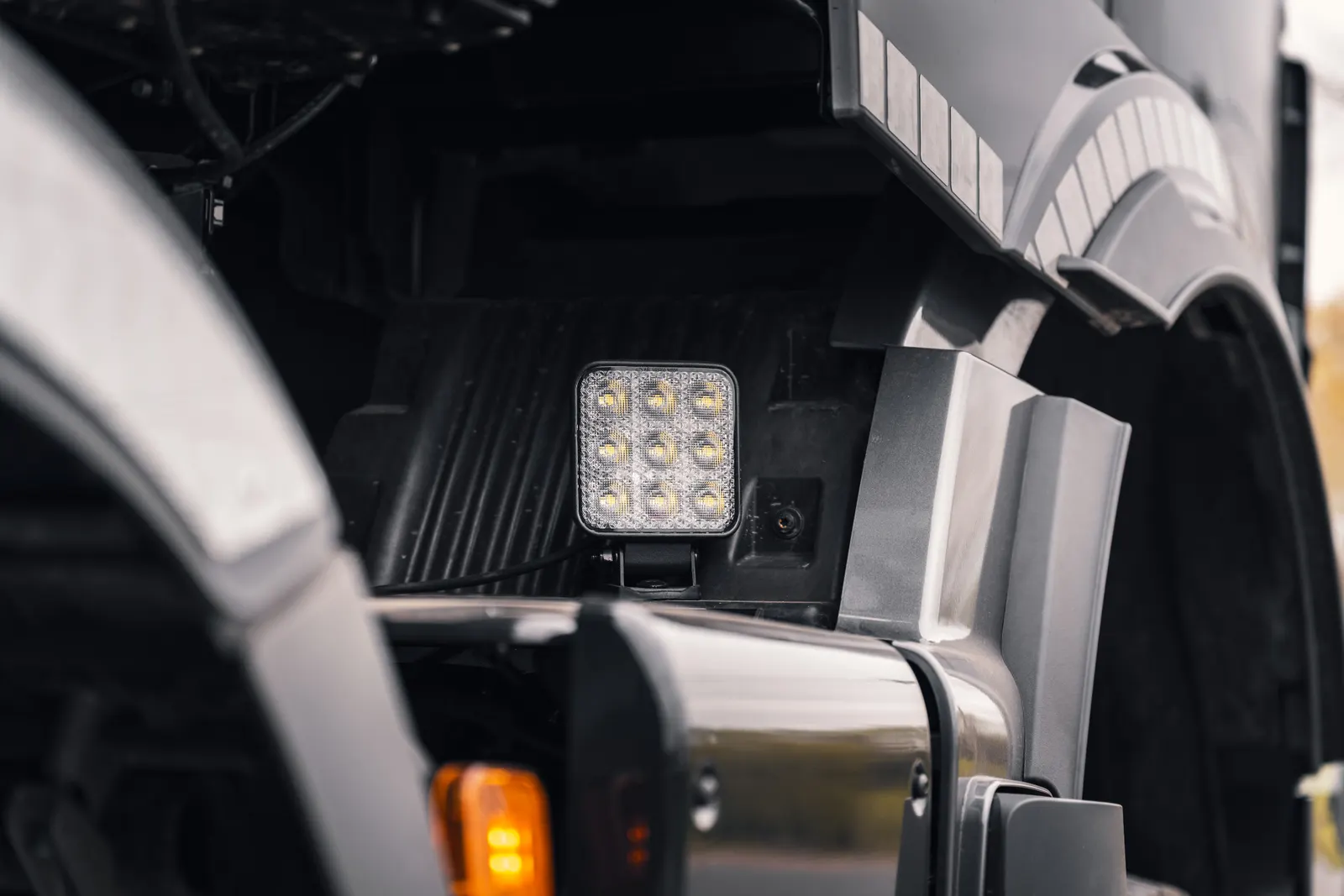

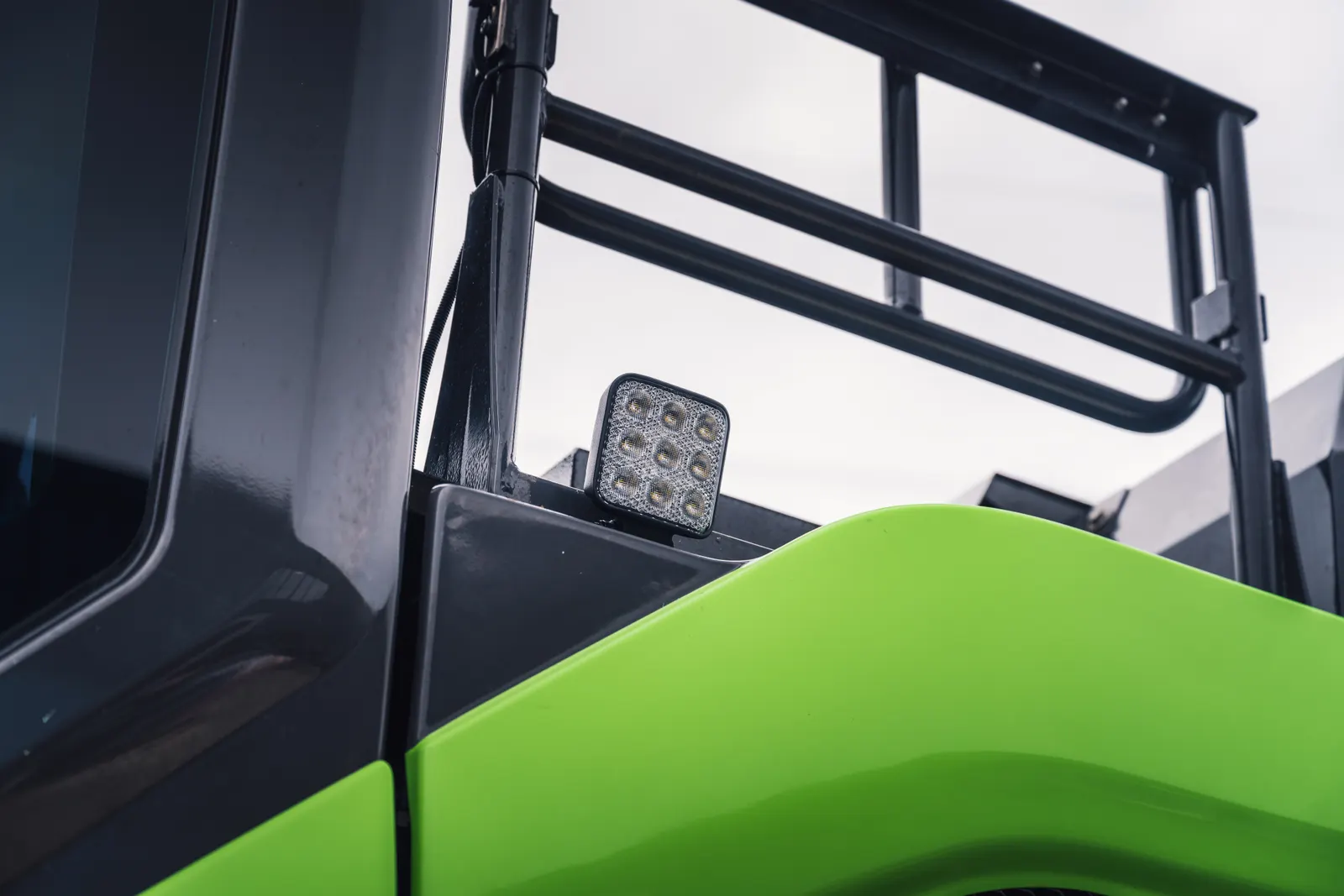

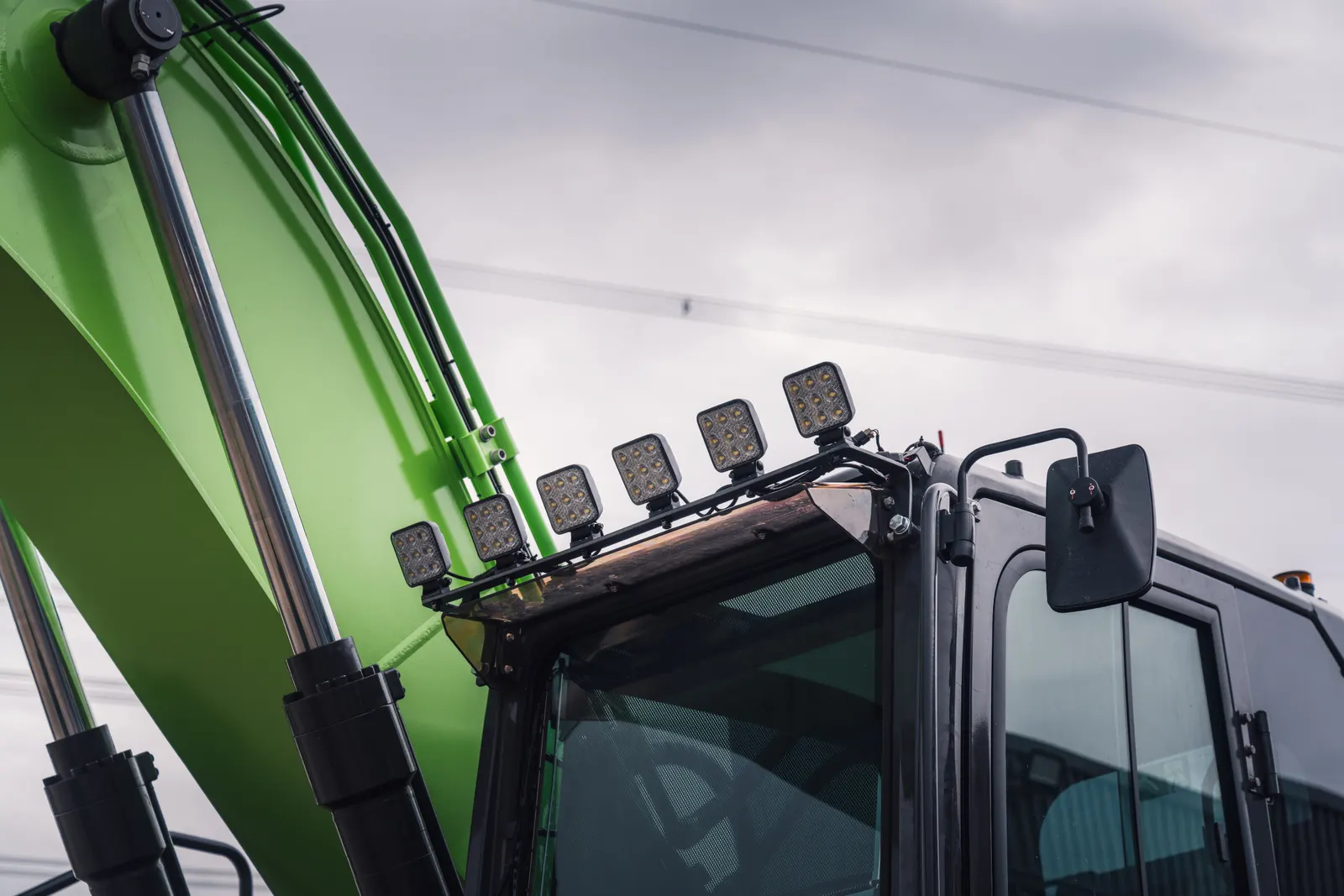

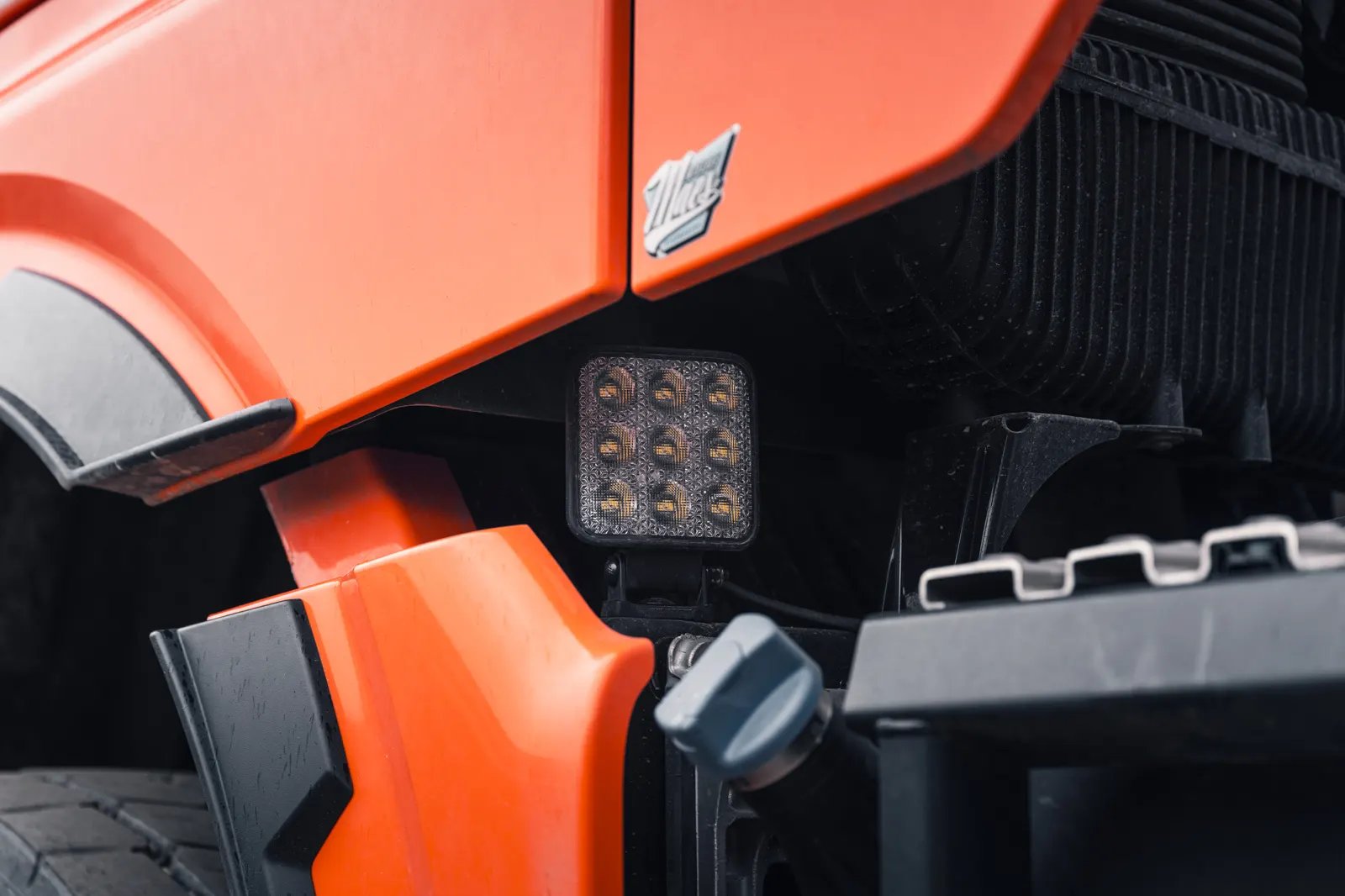

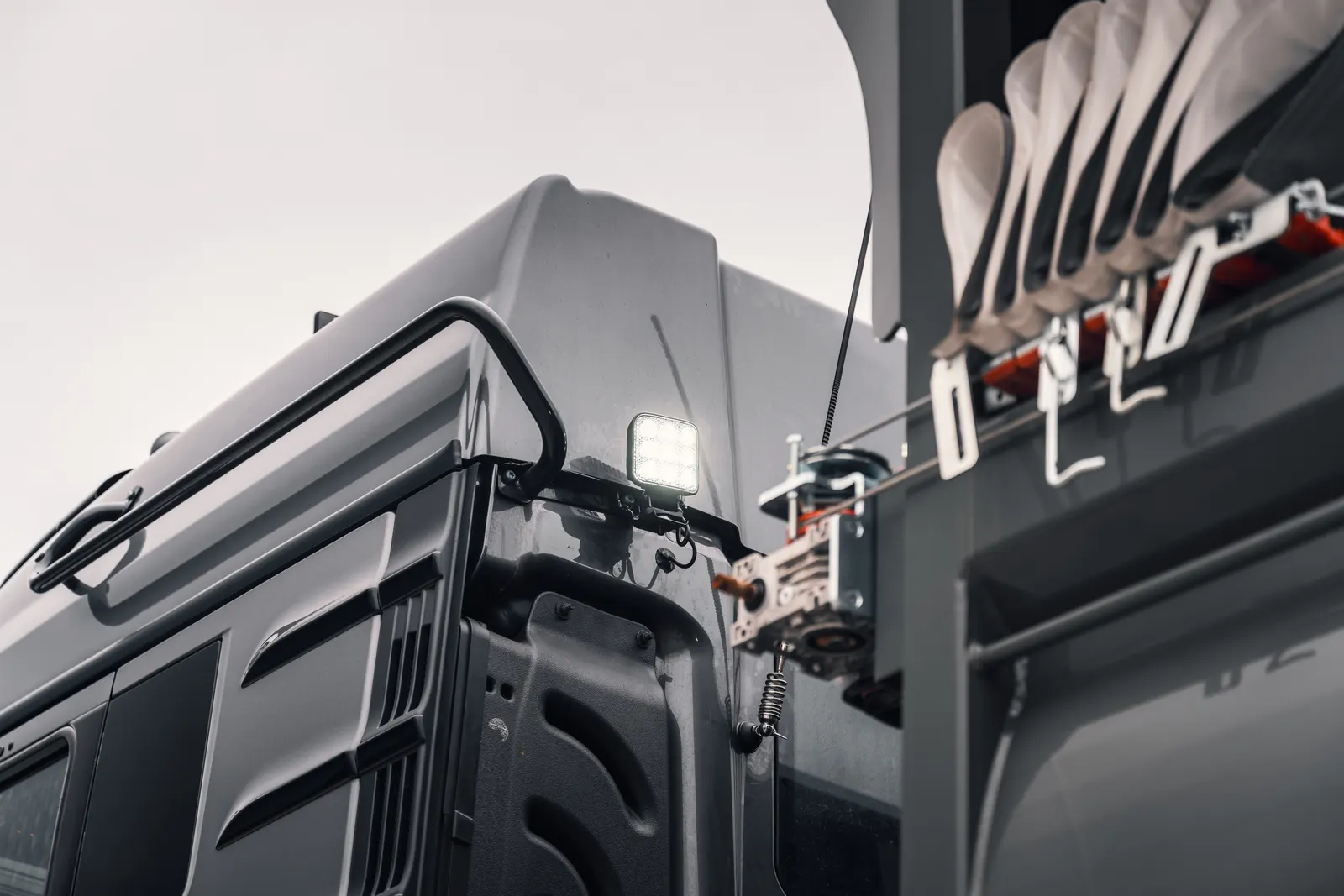

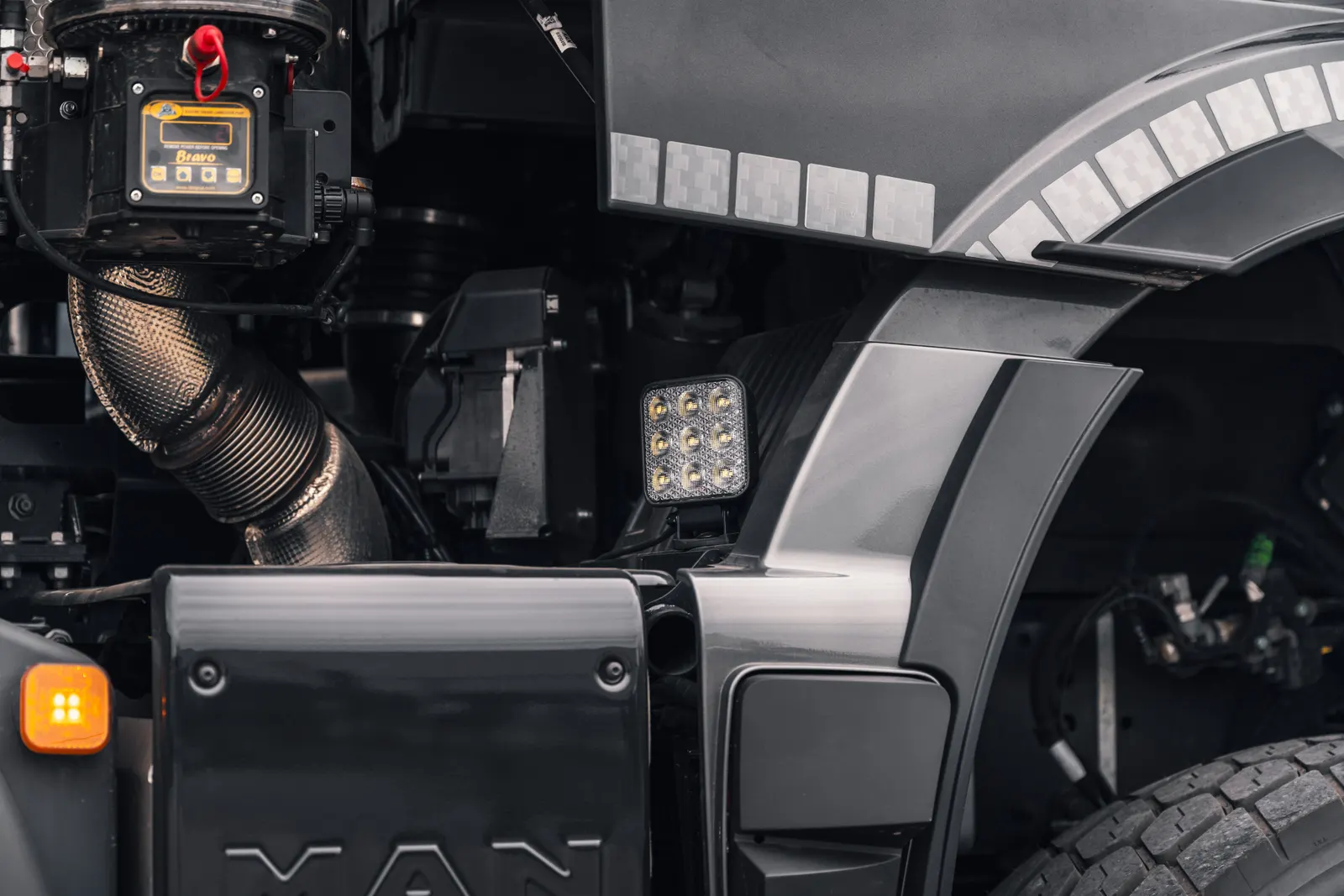

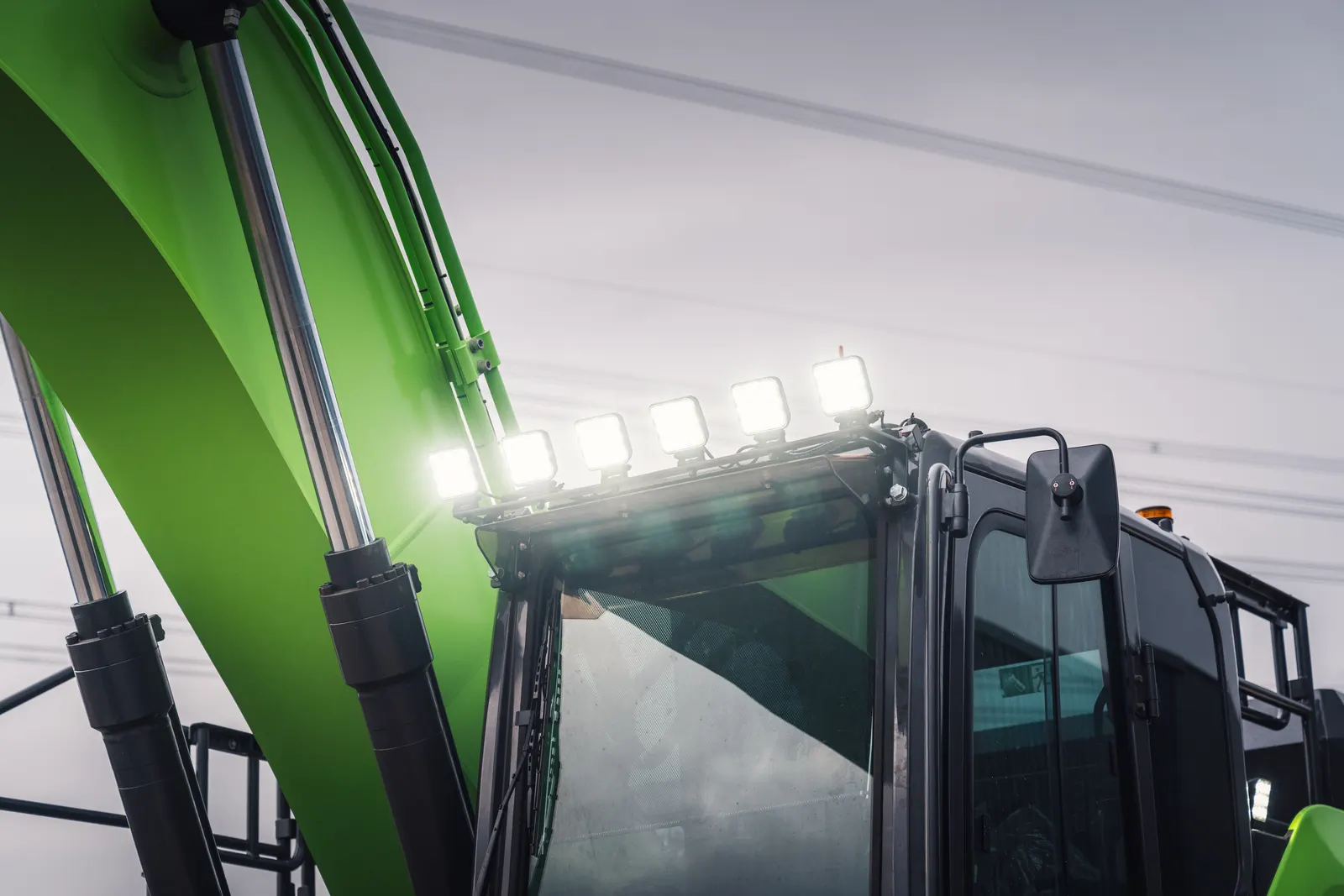

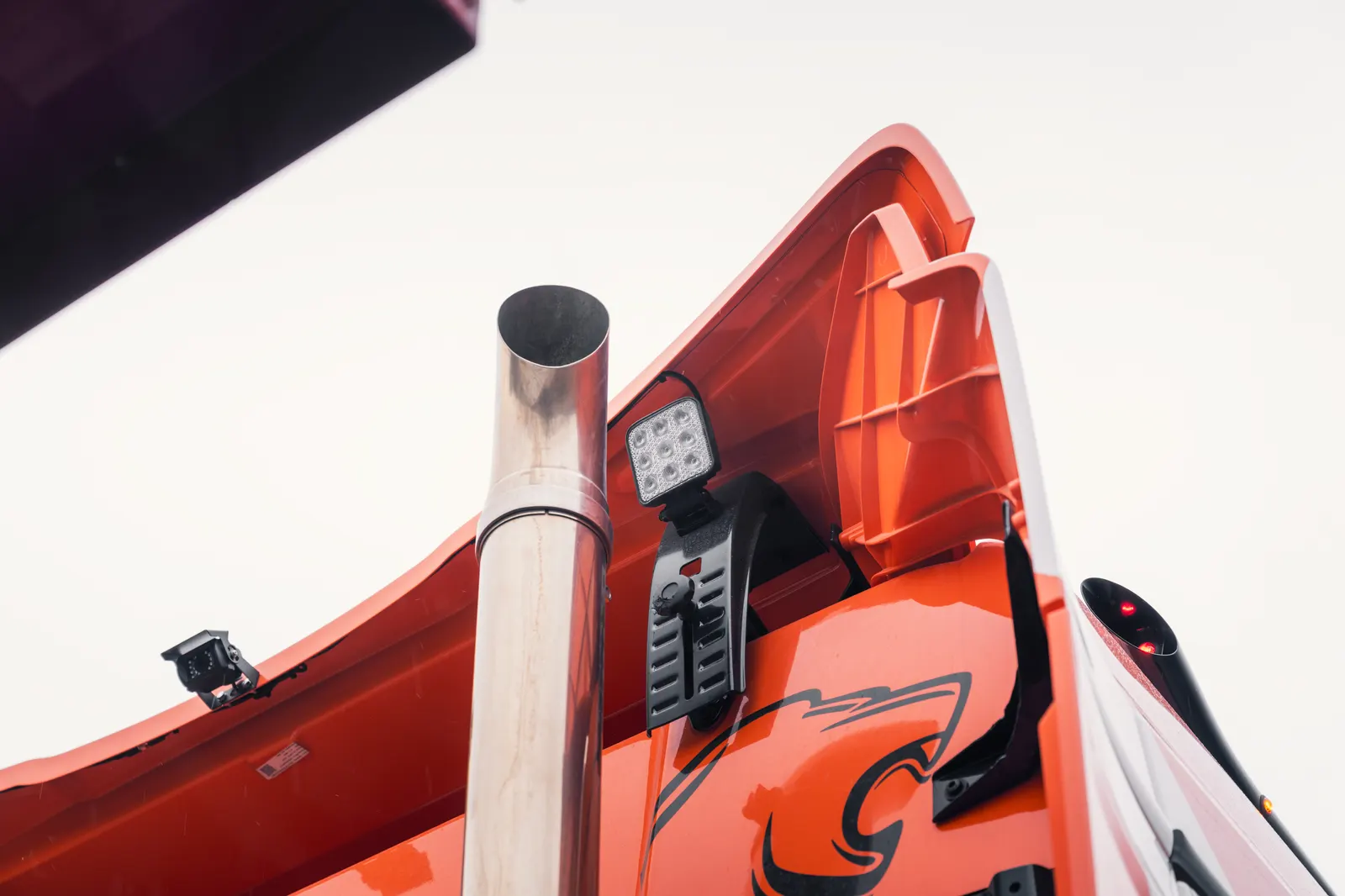

The TRALERT® Apex series LED work light is designed for reliable application in a variety of working environments, including trucks, agricultural vehicles and heavy machinery. With a light output of 6,500 lm, this work light functions as both a flood beam and an officially approved R23 LED reversing light. Thanks to its robust aluminium housing and polycarbonate lens, the light can withstand intensive use and harsh weather conditions. The work light is suitable for electrical systems from 9-30 V and is peak voltage resistant up to 36 V. The construction meets IP69K standard and certifications such as CE, ECE-R10, ECE-R148 (R23), ADR and CISPR25 Class 3, ensuring electromagnetic compatibility and safety. The 400 cm cable with open wire end offers flexible mounting options, while the compact size of 99.8 x 100.2 x 39.8 mm facilitates integration. Plus points of this series: - The new generation of LED work lights - Very fully certified, including ADR certification - Officially approved as R23 LED reversing lights - With rounded corners for excellent light distribution

Specificaties

General

Voltage
9-30v (peak voltage resistant to 36v)
Wattage
40.5 W
Power consumption
12V: 3.89A / 24V: 1.86A
Lumen
6500 lumens
IP rating
IP69K
Certifications
ADR, CE, CISPR25Class3, ECE-R10, ECE-R148 (R23)
Warranty
3 jaar

Dimensions

Dimensions
99.8 x 100.2 x 39.8mm
Width
99, 8mm
Depth
39, 8mm
Height
100, 2mm
Shape
Square

Optics

Light pattern
Reversing lights

Materials

Housing colour
Black
Housing material
Aluminium
Lens colour
Transparent
Lens material
Polycarbonate

Technical

Connector
Open wire end
Cable length
400cm kabel
Mounting
Surface mounting

Other

num leds
27 x Osram 3030 LEDs
height incl base
121, 3mm
