LED work light with position lights (RWA) 10-30v | 400cm cable
ECE
TRALERT®

LED work light with position lights (RWA) 10-30v | 400cm cable

Artikelcode: WF-6059RWAEAN: 8720364583064
VrachtwagenAanhangerBedrijfswagenAanhanger (klein)TractorGraafmachine4x4

€ 99,81

Prijs incl. btw · € 82,49 prijs excl. btw

Op voorraad

Bestel vóór 16:00 — verzending volgende werkdag

+ verzending vanaf € 7,50 · gratis vanaf € 350,00

Europese voorraad
Technisch advies
14 dagen retour
Korting vanaf 10 stuks

Doosvoordeel

Bestel een complete doos van dit product en bespaar direct.

Geldt per identiek artikel — kies dezelfde SKU. Doos direct vanuit voorraad geleverd.

Omschrijving

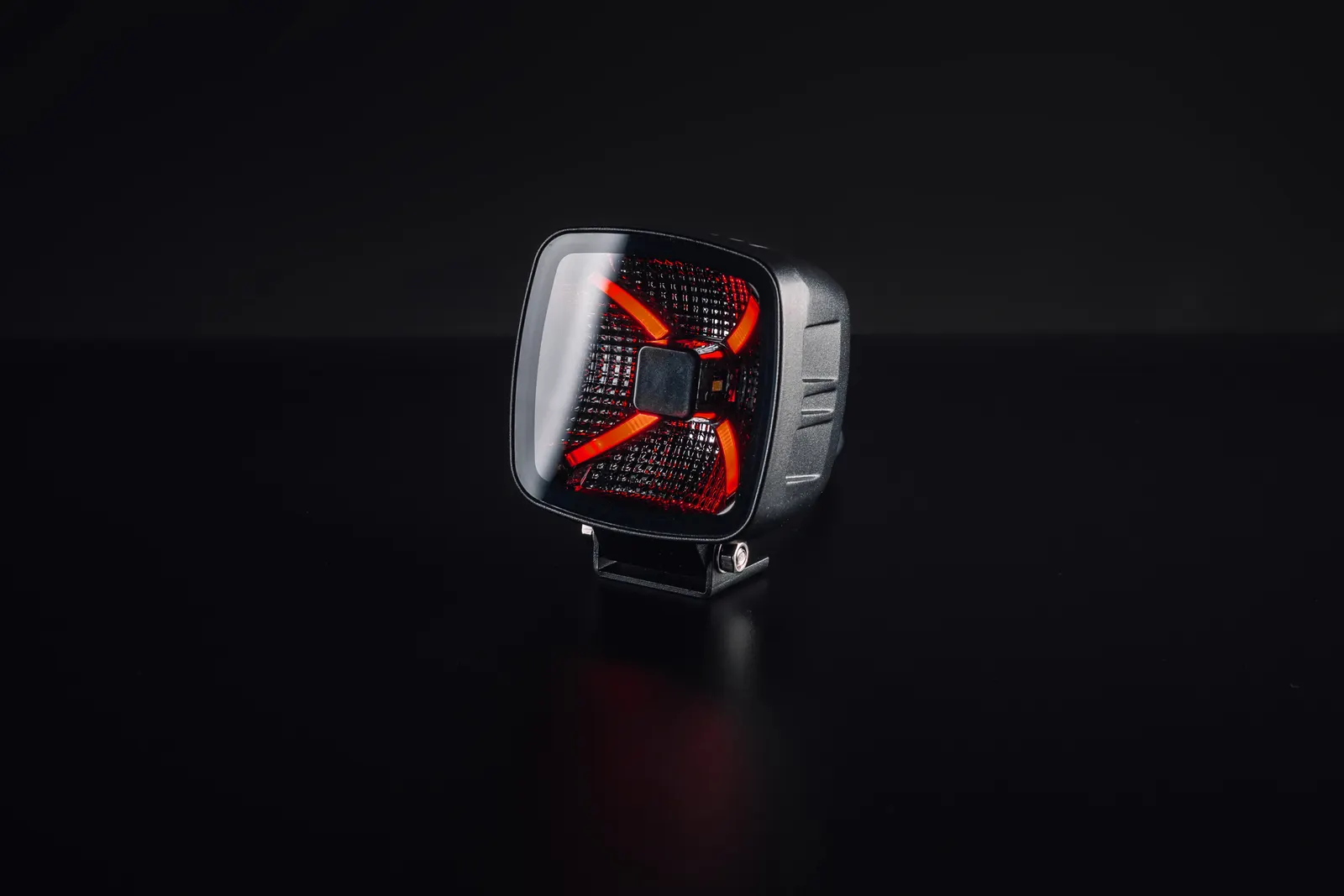

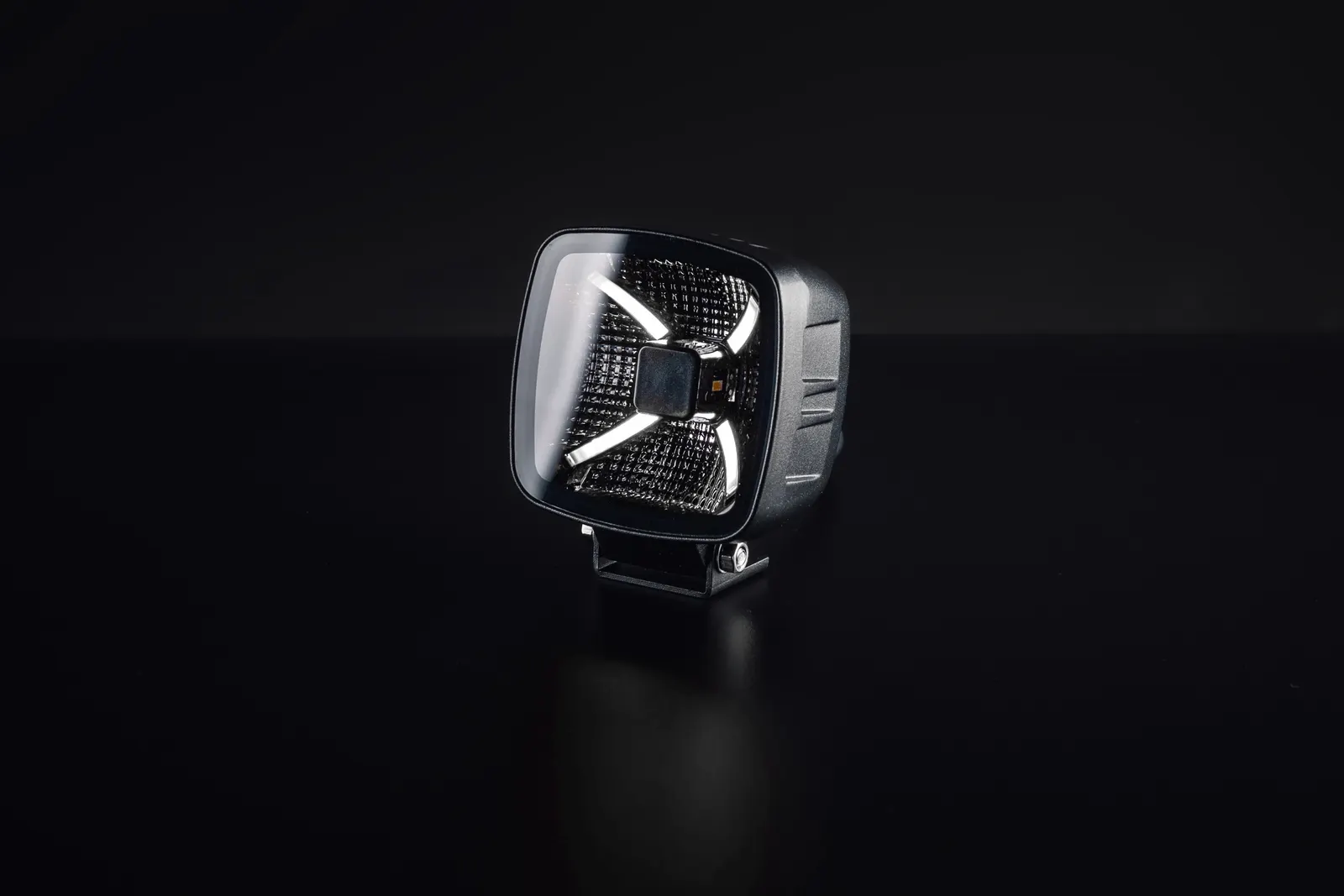

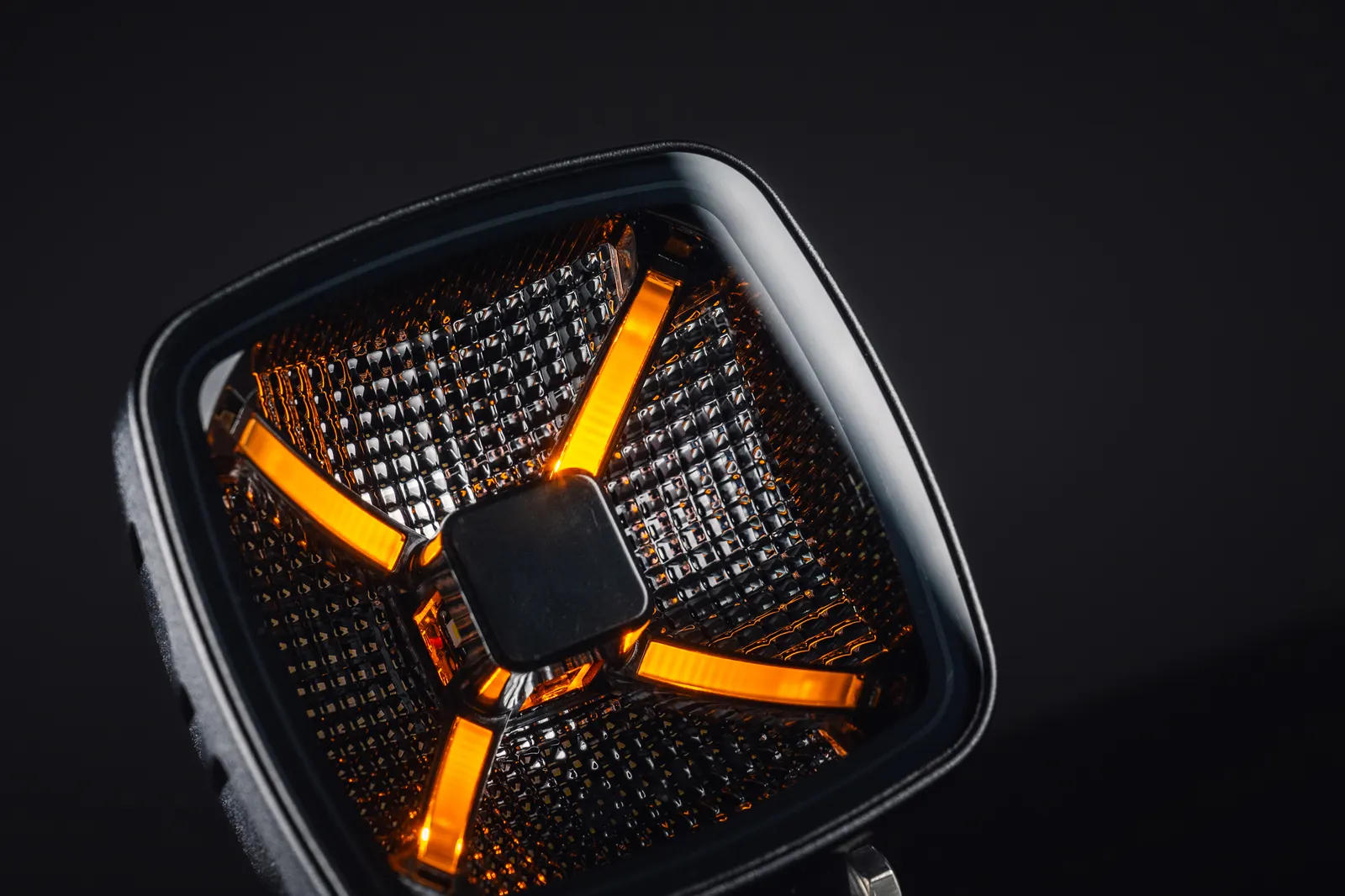

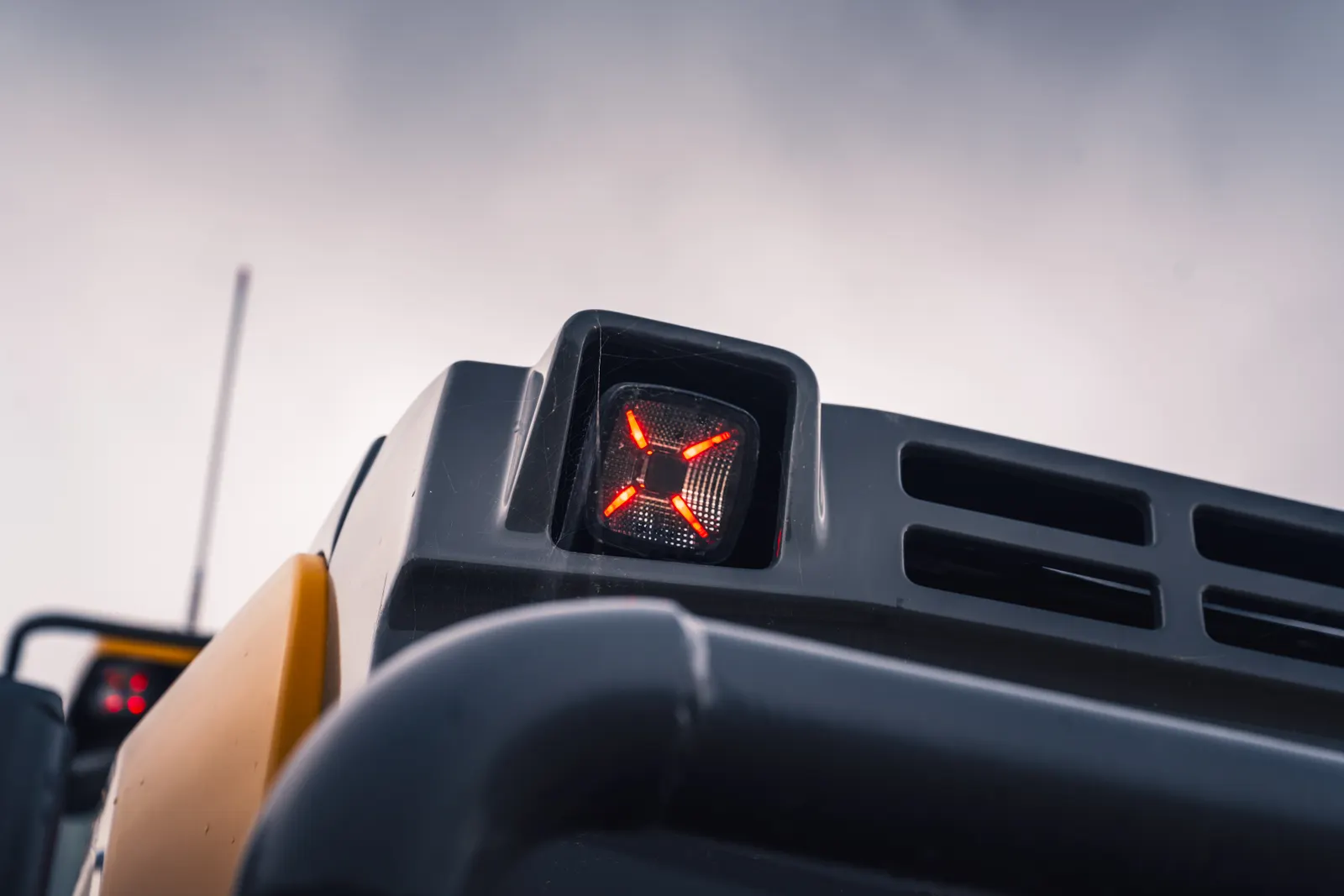

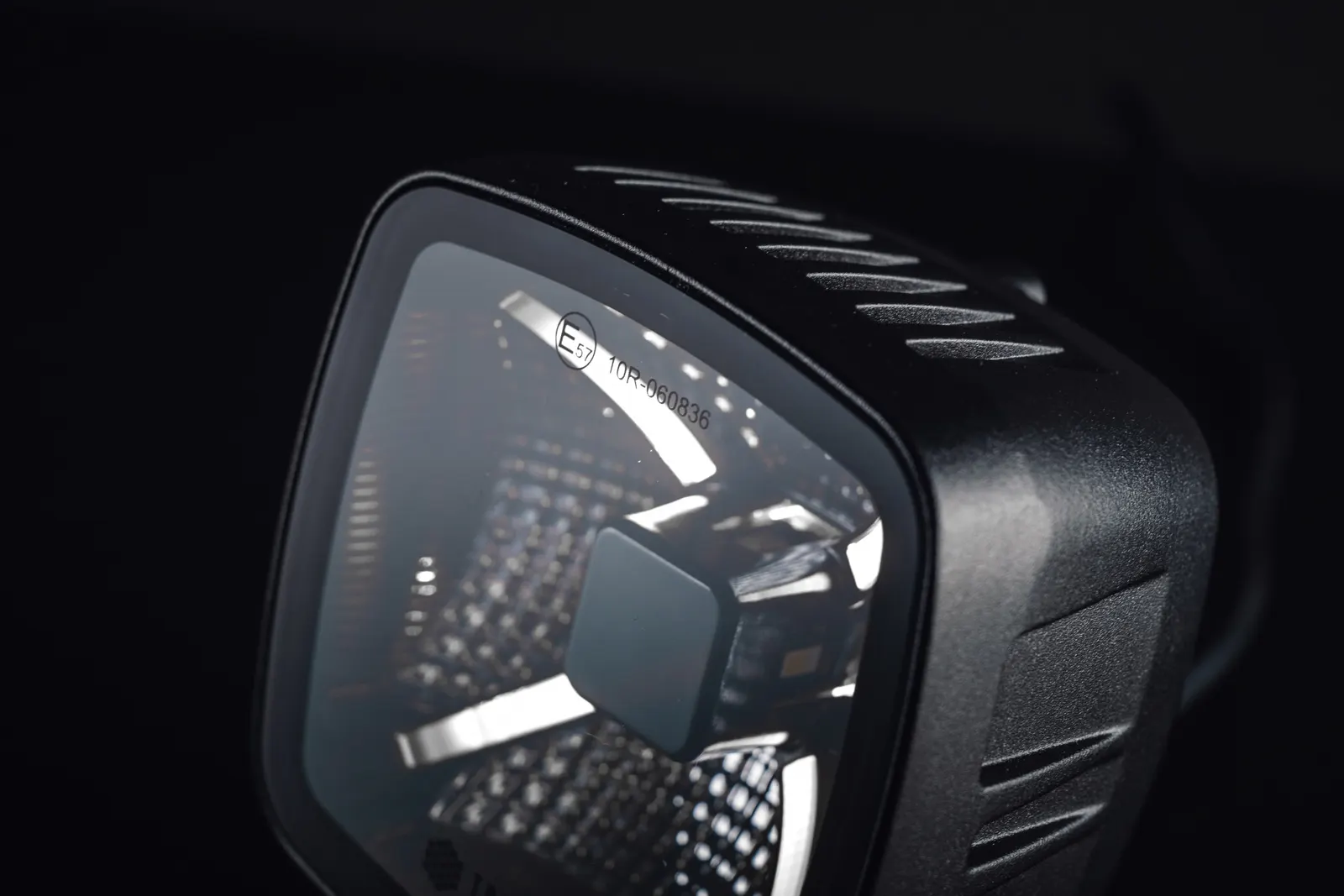

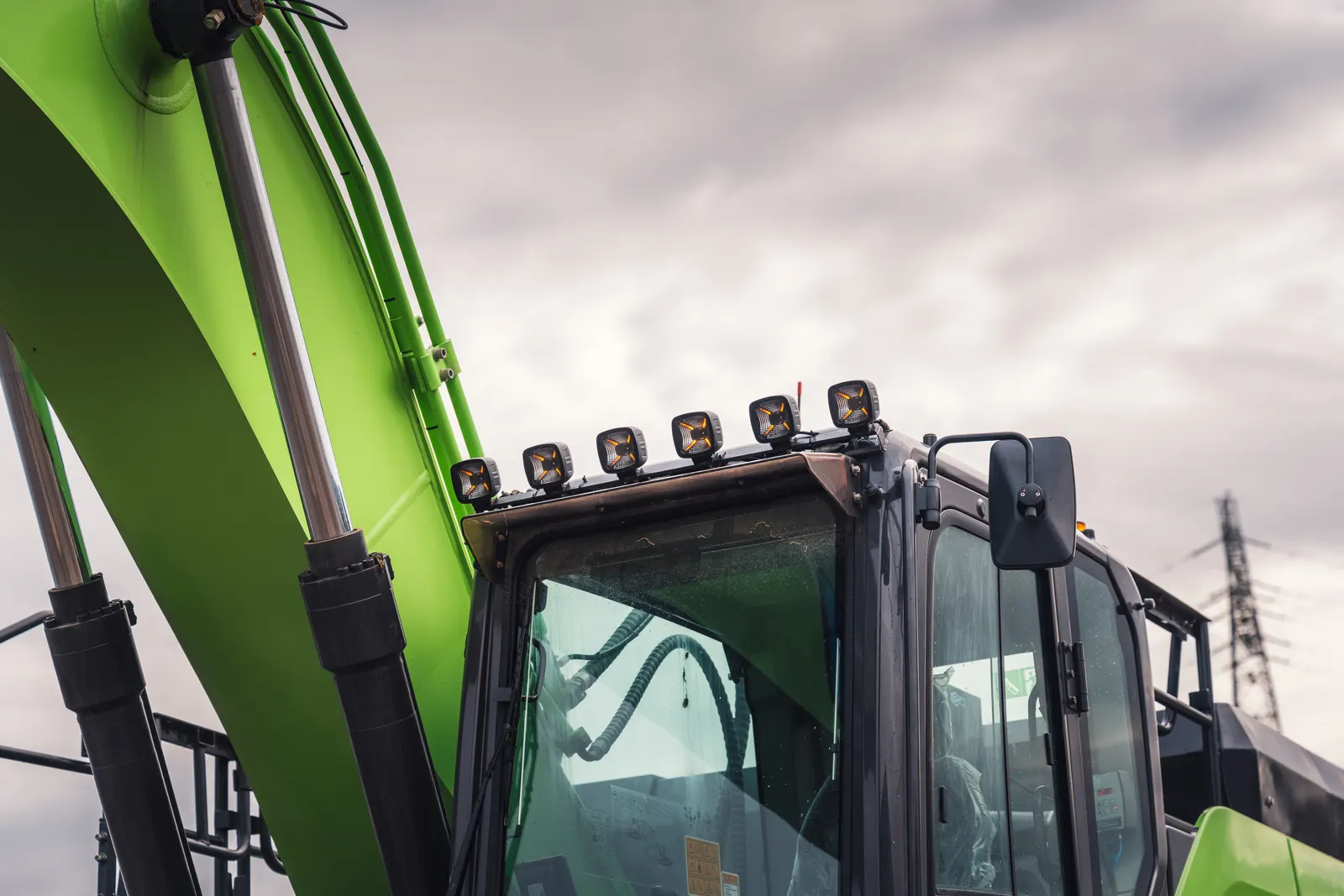

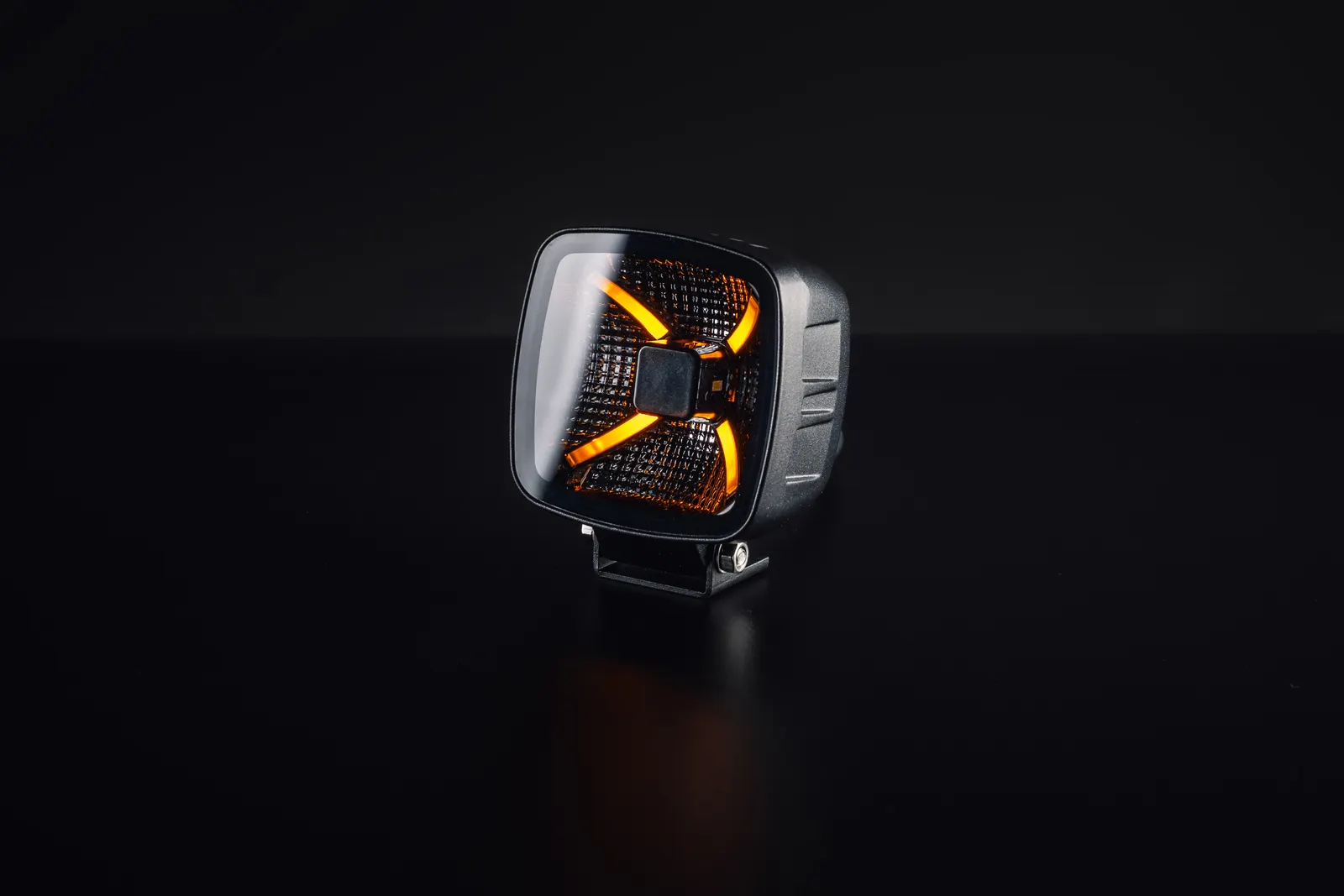

The TRALERT® Onix serie LED work lights is designed for work environments where reliable and versatile lighting is required. This work light offers wide light distribution with integrated position lights in red, white and amber. Its light image as a flood beam with position lights makes this light suitable for a variety of applications on vehicles, machines and implements in various sectors. The housing is made of aluminium and fitted with an impact-resistant polycarbonate lens, which increases its resistance to external influences. Protection is confirmed by the IP68 classification. In addition, the work light complies with CE and ECE-R10 guidelines. The working voltage is between 9 and 30 V, with peak voltage resistance up to 36 V. The light output is 5,948 lm. The work light has a 400 cm long cable with open wire end and is suitable for surface mounting. Plus points of this series: - Special RFT lens technology - Optimum light distribution for an ideally illuminated work field - Full certification - New top model with 3-colour position lights

Specificaties

General

Voltage
9-30v (peak voltage resistant to 36v)
Wattage
60 Watt
Power consumption
12V: 3.33A / 24V: 1.71A
Lumen
5948 lumens
IP rating
IP68
Certifications
CE, ECE-R10
Warranty
3 jaar

Dimensions

Dimensions
92.6 x 92.6 x 62.9mm
Width
92, 6mm
Depth
62, 9mm
Height
92, 6mm
Shape
Square

Optics

Light colour
Red, white, amber
Light pattern
Flood beam

Materials

Housing colour
Black
Housing material
Aluminium
Lens colour
Transparent
Lens material
Polycarbonate

Technical

Connector
Open wire end
Cable length
400cm kabel
Mounting
Surface mounting

Other

num leds
4x 15W LEDs
height incl base
109, 3mm

Video

Documenten

  • pdfDatasheet WF 6059RWA ENGOpenen
  • pdfProduct leaflet Onix Series ENOpenen
  • pdfDatasheet WF 6059RWAOpenen
  • pdfProduct leaflet Onix SeriesOpenen
  • pdfProduct leaflet Onix Series DEOpenen
  • pdfProduct leaflet Onix Series FROpenen
  • pdfDatasheet WF 6059RWA ITOpenen
  • pdfProduct leaflet Onix Series ITOpenen

Lees u verder in

More guides

EU legislation

ECE R10 — electromagnetic compatibility for vehicle electronics.

R10 is the reason a cheap LED strip can make a truck's ABS throw faults. It regulates how much electrical noise a lamp is allowed to emit, and how much external interference it has to tolerate. Every lamp destined for a European road carrying a CE mark also needs an R10 stamp — the two are not the same.

Read article

EU legislation

ECE R149 — unified road-illumination regulation.

R149 is the companion to R148. It consolidates the regulations for headlamps, front fog lamps, cornering lamps and similar road-illumination devices (the old R19, R98, R112, R113, R123) into one document. Same concept as R148 — the technical bar stays; the paperwork and approval process are streamlined.

Read article

EU legislation

ADR — lighting rules for dangerous-goods transport.

ADR is the European agreement governing the international carriage of dangerous goods by road. Annex B, Part 9 contains the electrical-installation rules that a lamp on an ADR-rated vehicle must meet. It is stricter than ordinary road-vehicle standards — a lamp fitted to a tanker carrying flammable liquid has to survive electrical and mechanical conditions an ordinary delivery truck never sees.

Read article
