LED work light 2800 lm - 24 Watt - IP69K | WR-2428.1
ECE
TRALERT®

LED work light 2800 lm - 24 Watt - IP69K | WR-2428.1

Artikelcode: WR-2428.1EAN: 8720364581589
VrachtwagenAanhangerBedrijfswagenAanhanger (klein)TractorGraafmachine4x4

€ 61,50

Prijs incl. btw · € 50,83 prijs excl. btw

Op voorraad

Bestel vóór 16:00 — verzending volgende werkdag

+ verzending vanaf € 7,50 · gratis vanaf € 350,00

Europese voorraad
Technisch advies
14 dagen retour
Korting vanaf 10 stuks

Doosvoordeel

Bestel een complete doos van dit product en bespaar direct.

Geldt per identiek artikel — kies dezelfde SKU. Doos direct vanuit voorraad geleverd.

Omschrijving

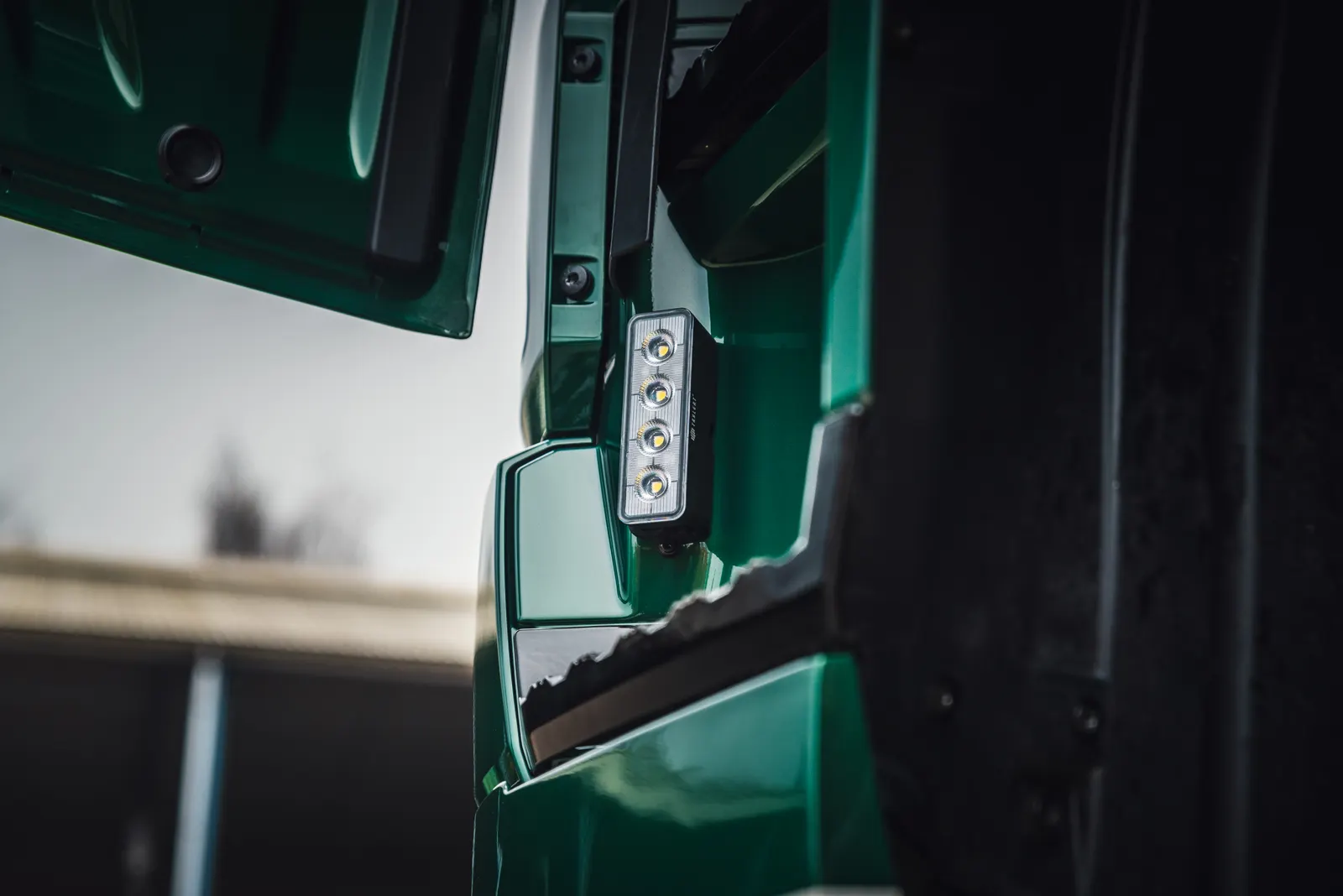

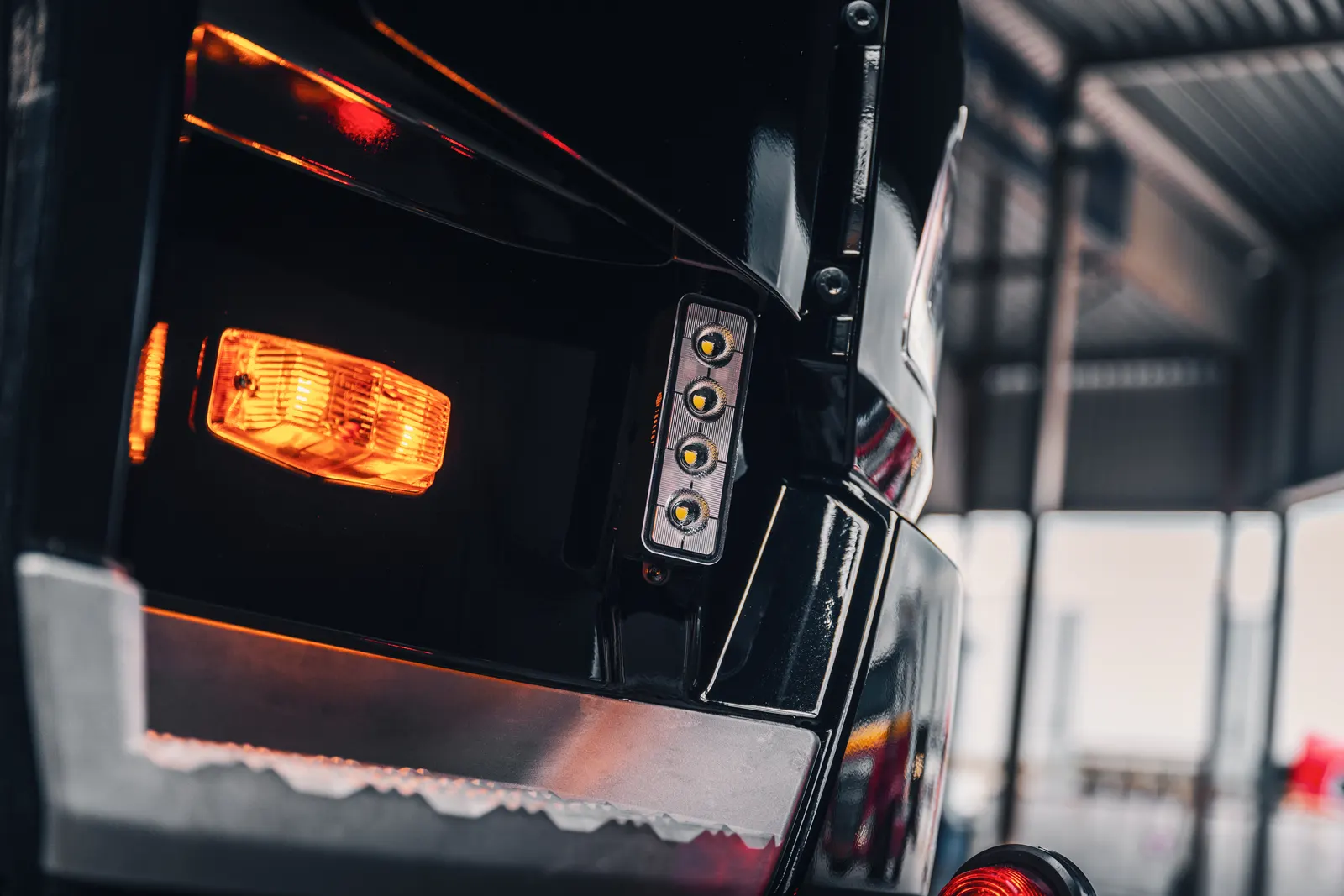

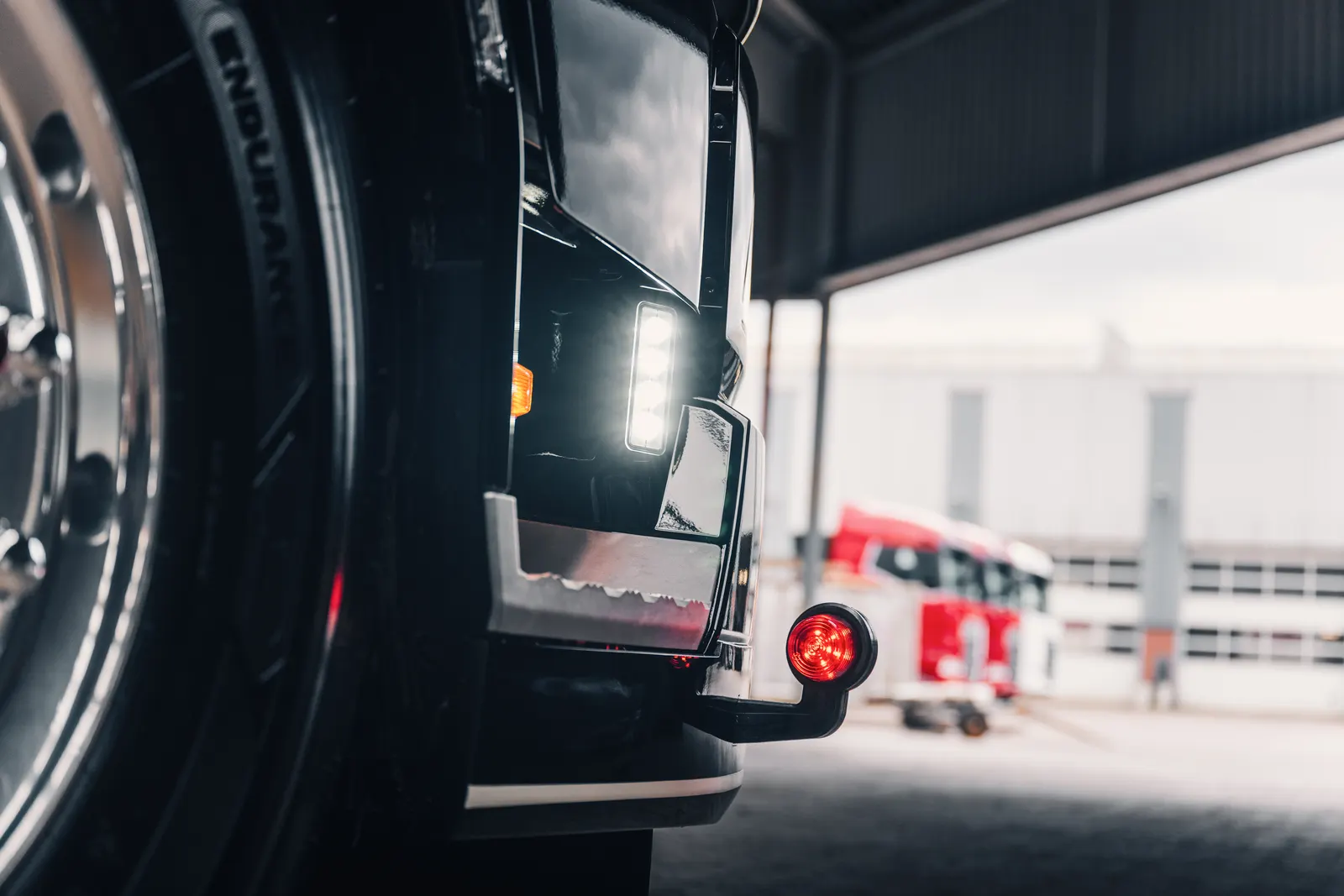

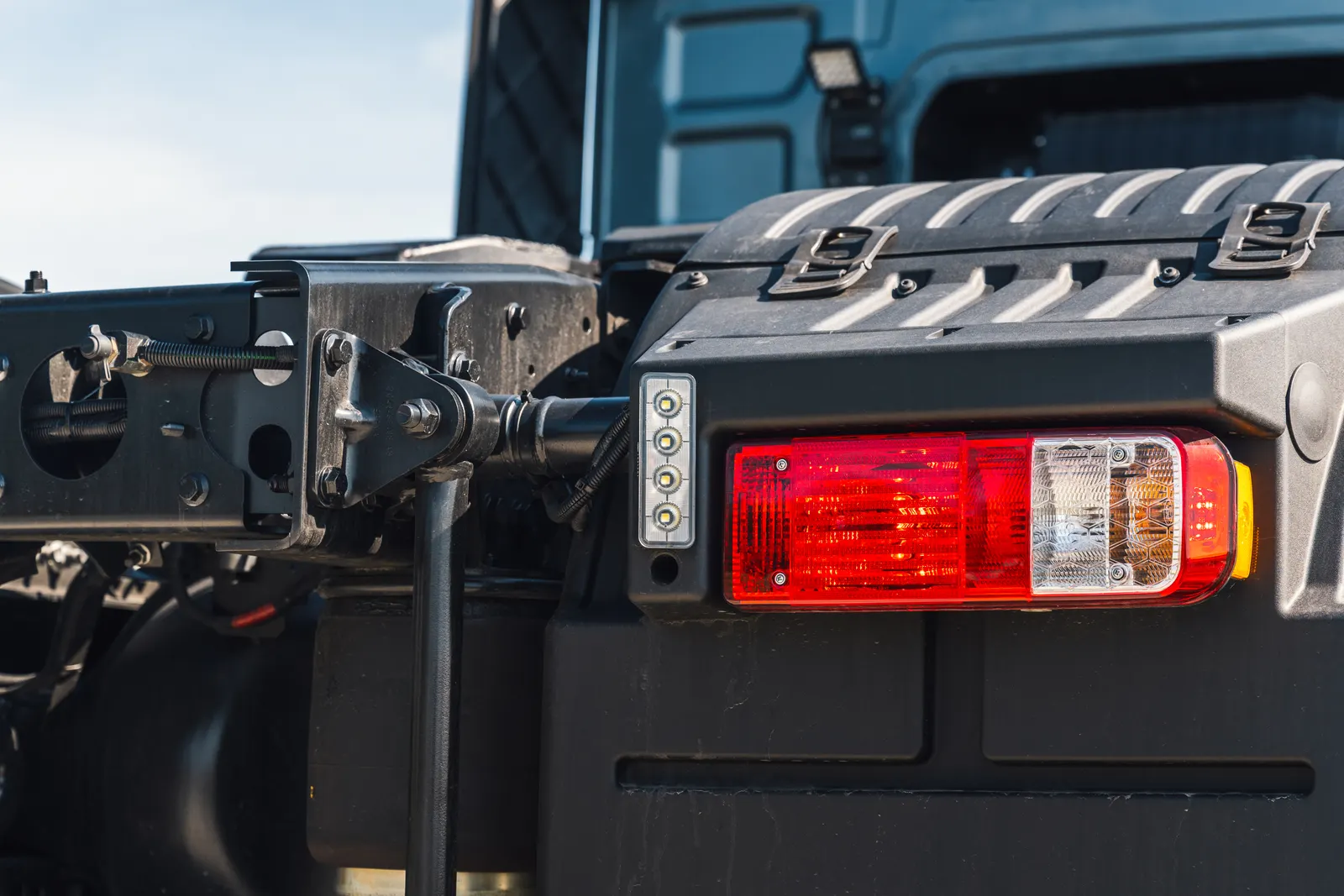

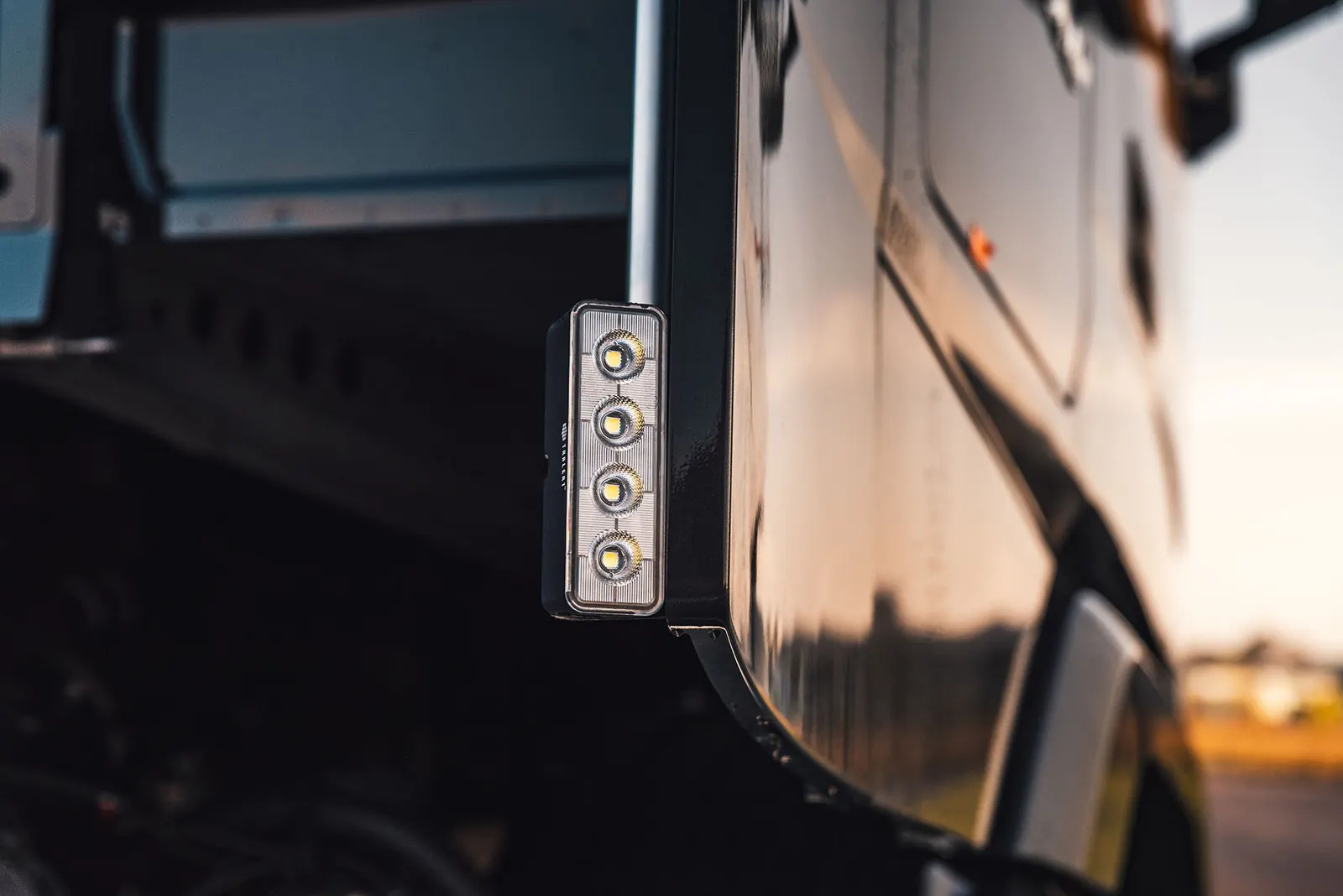

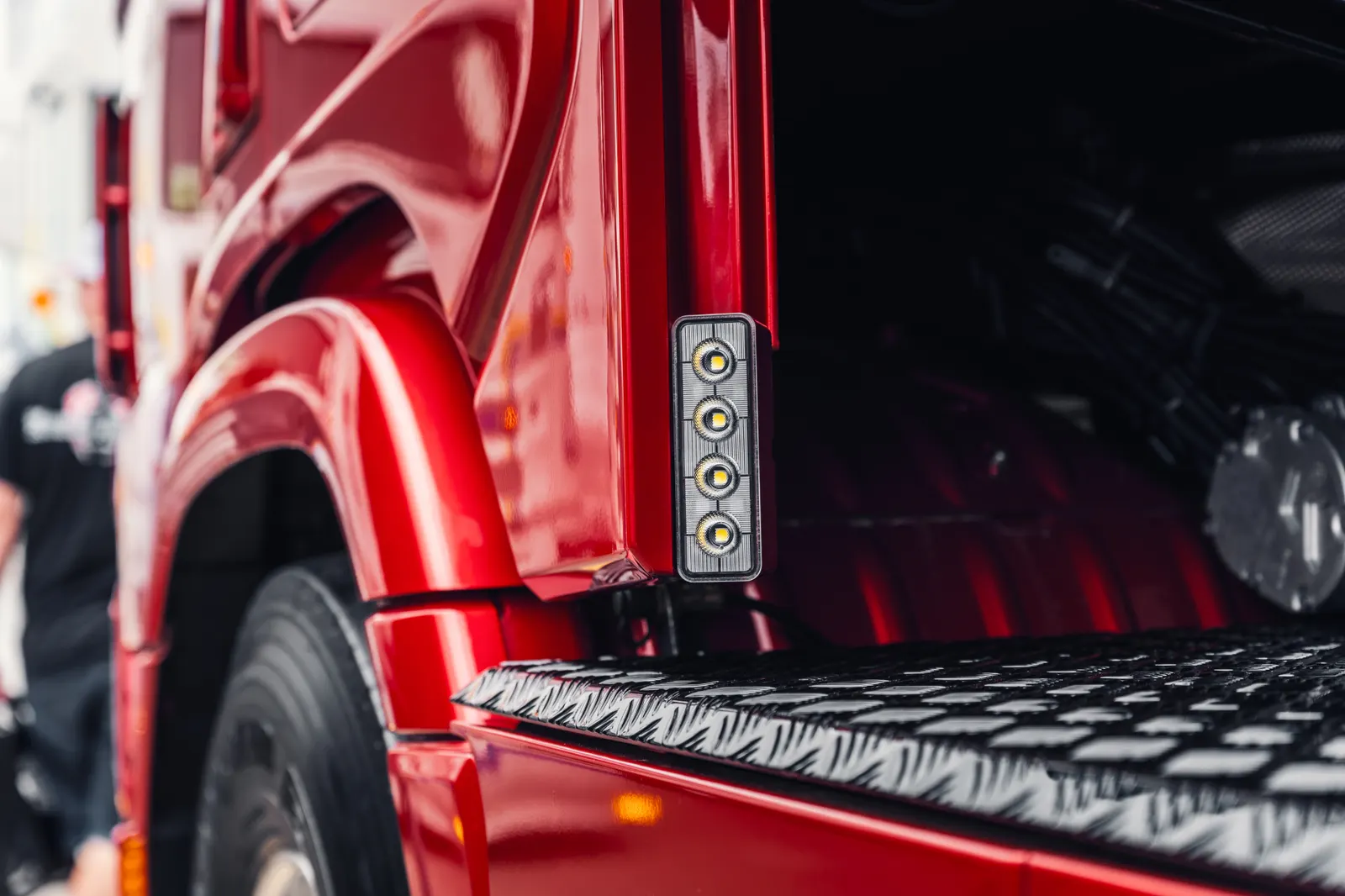

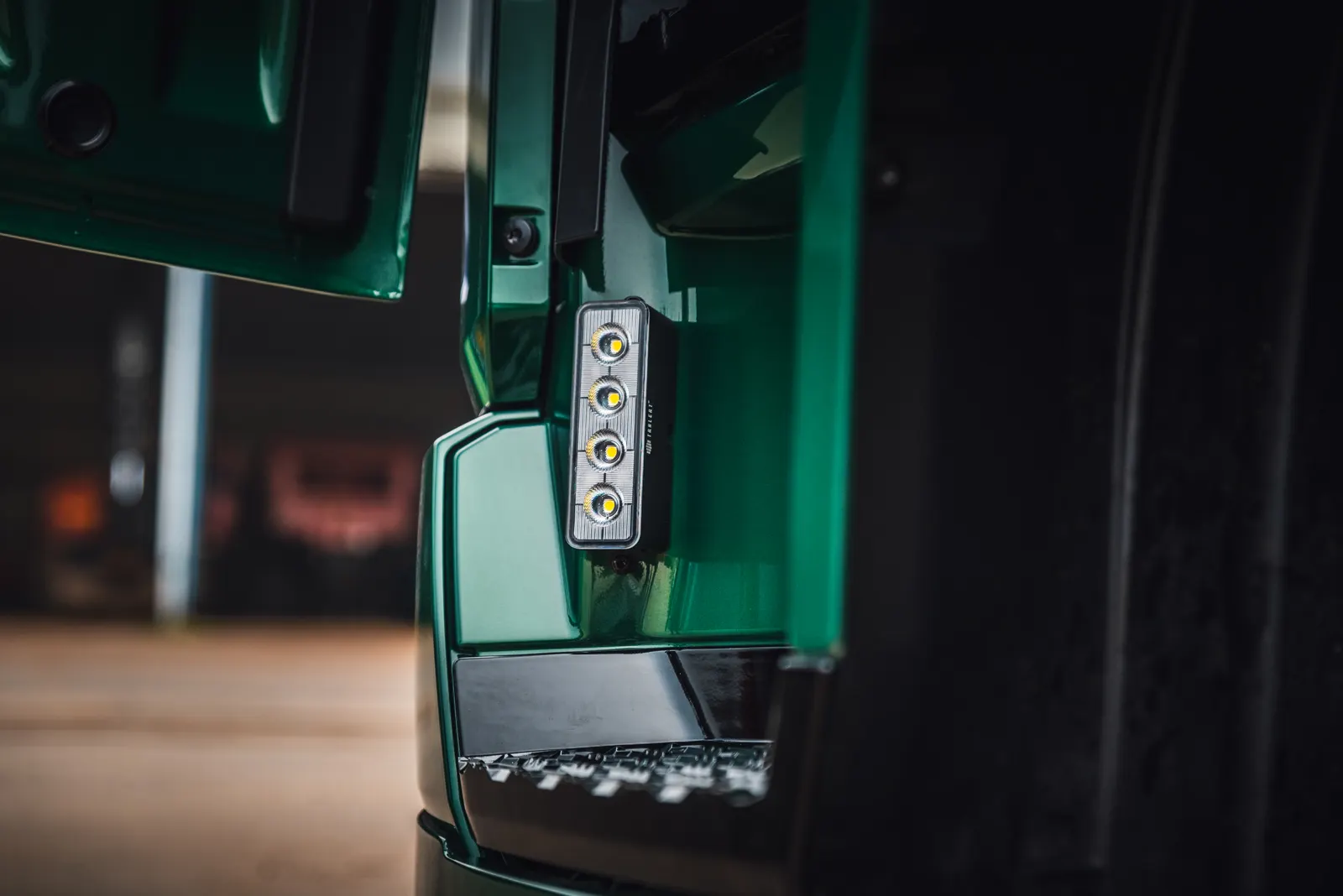

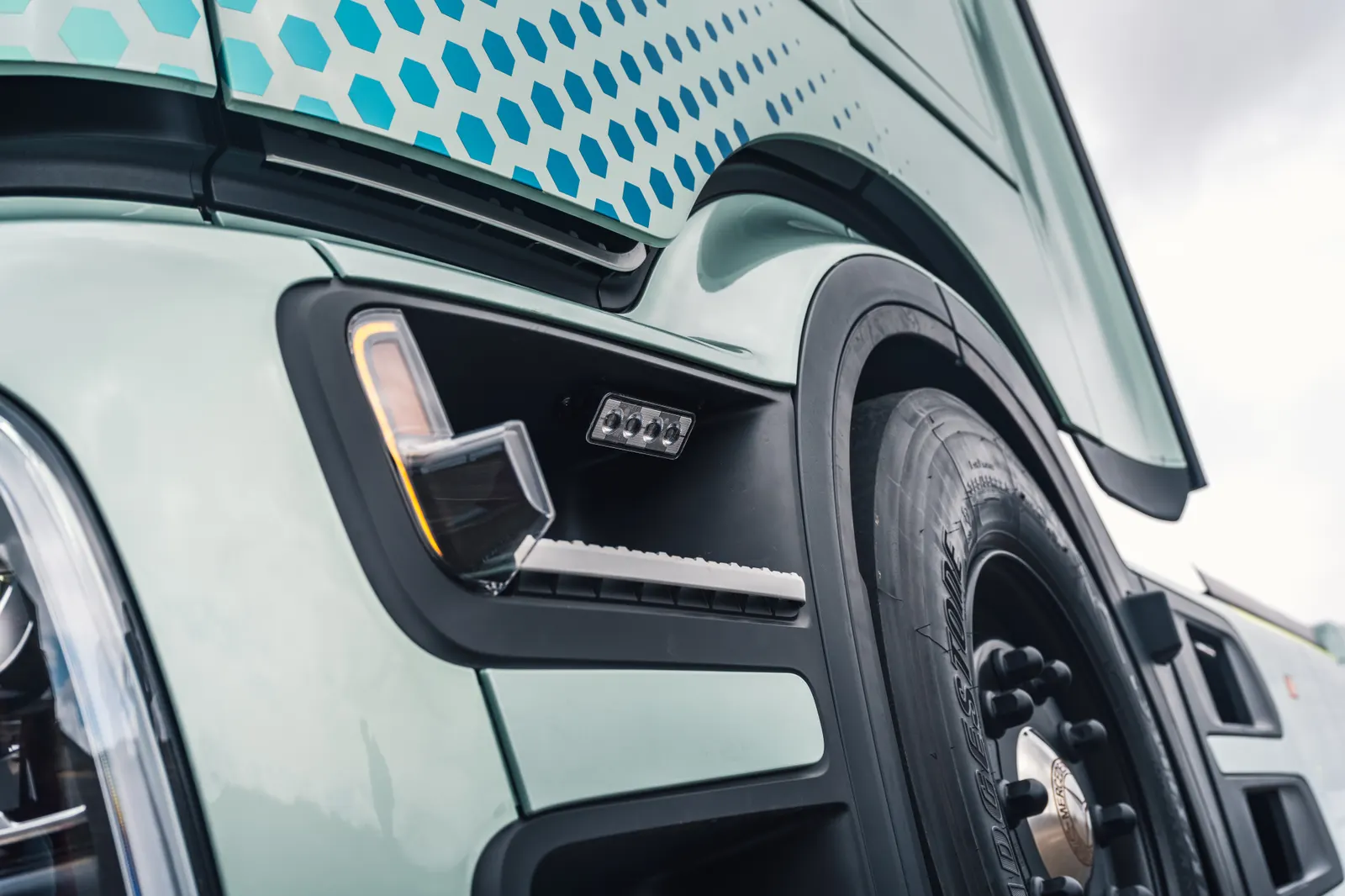

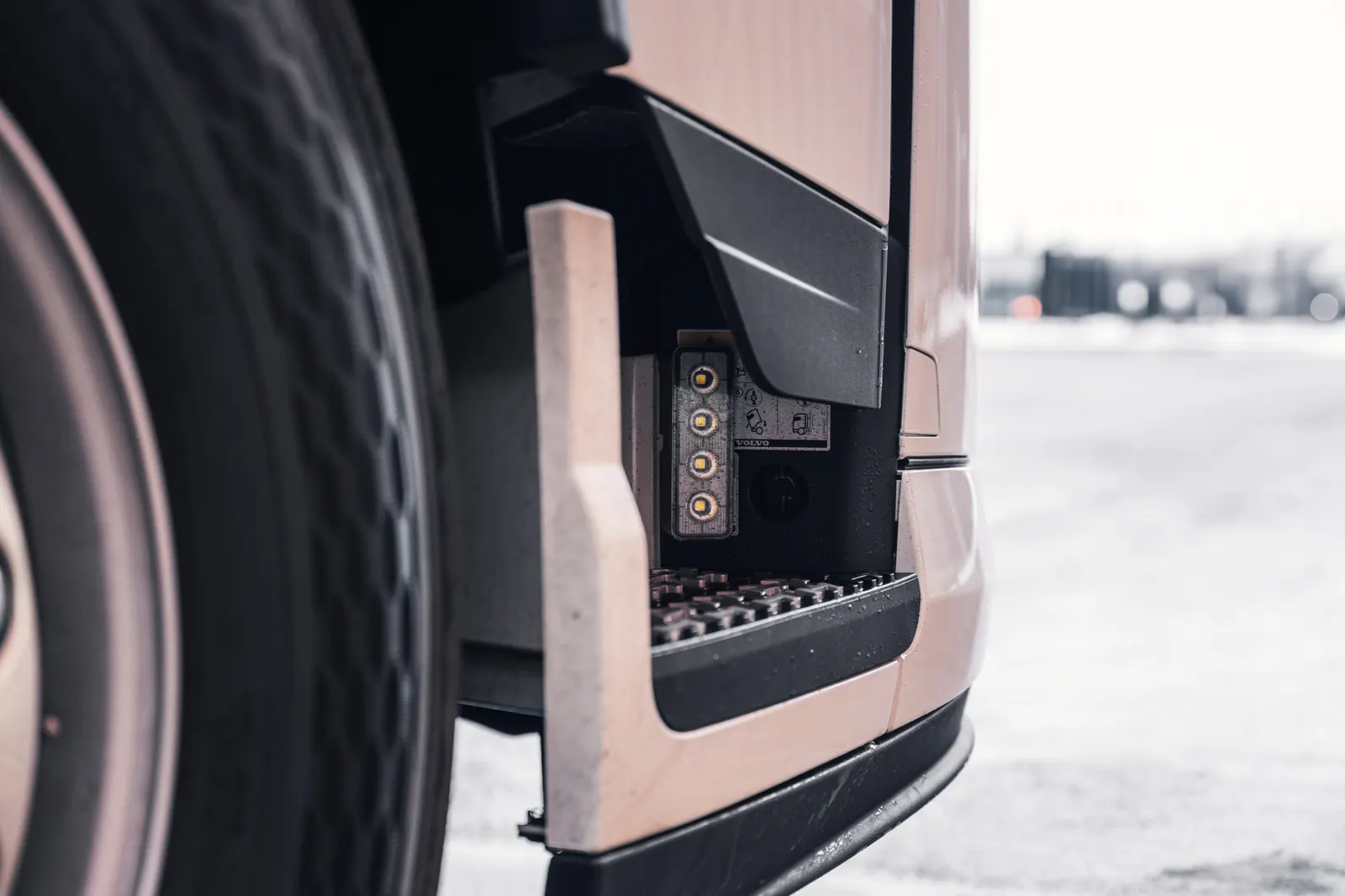

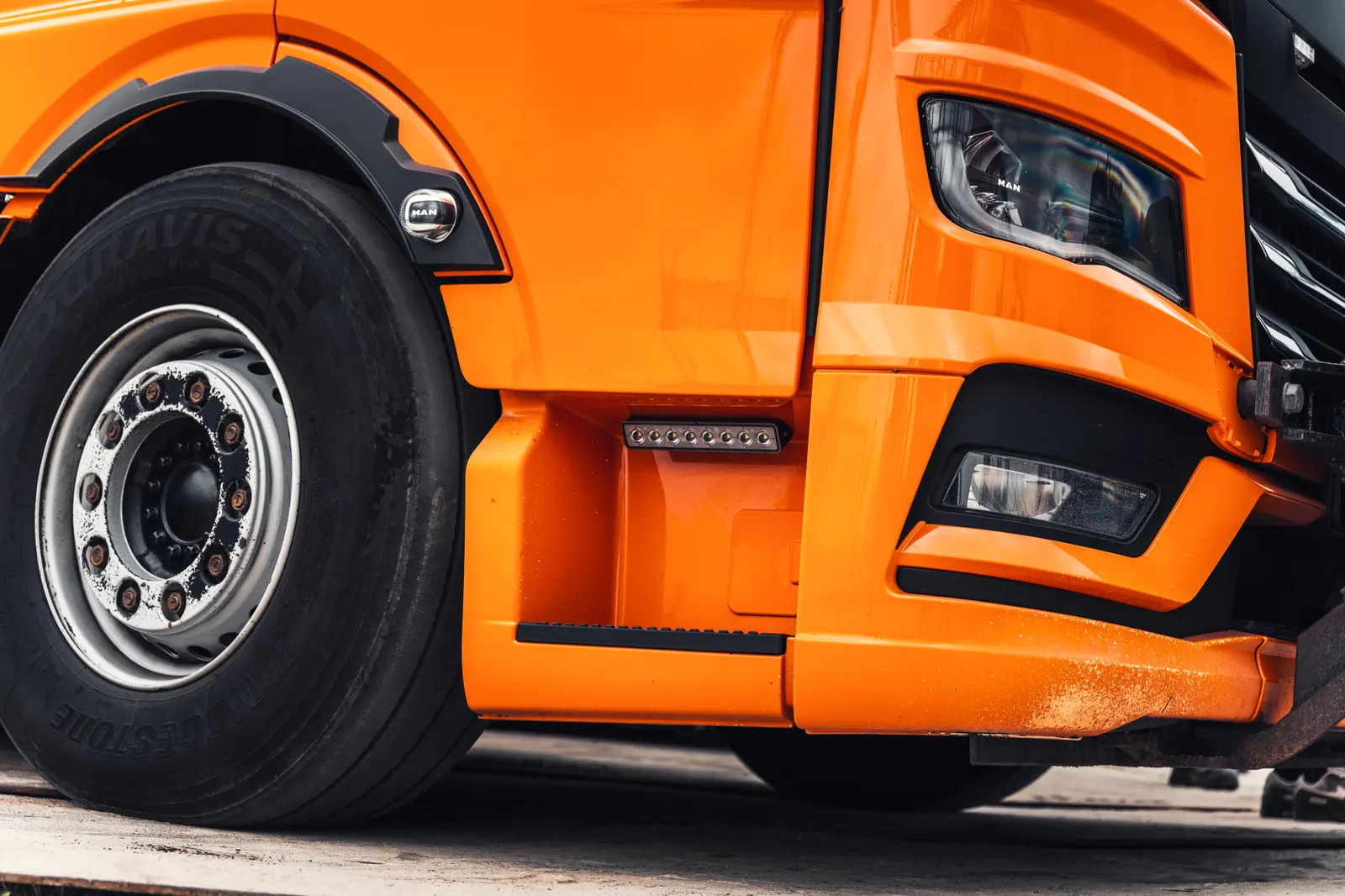

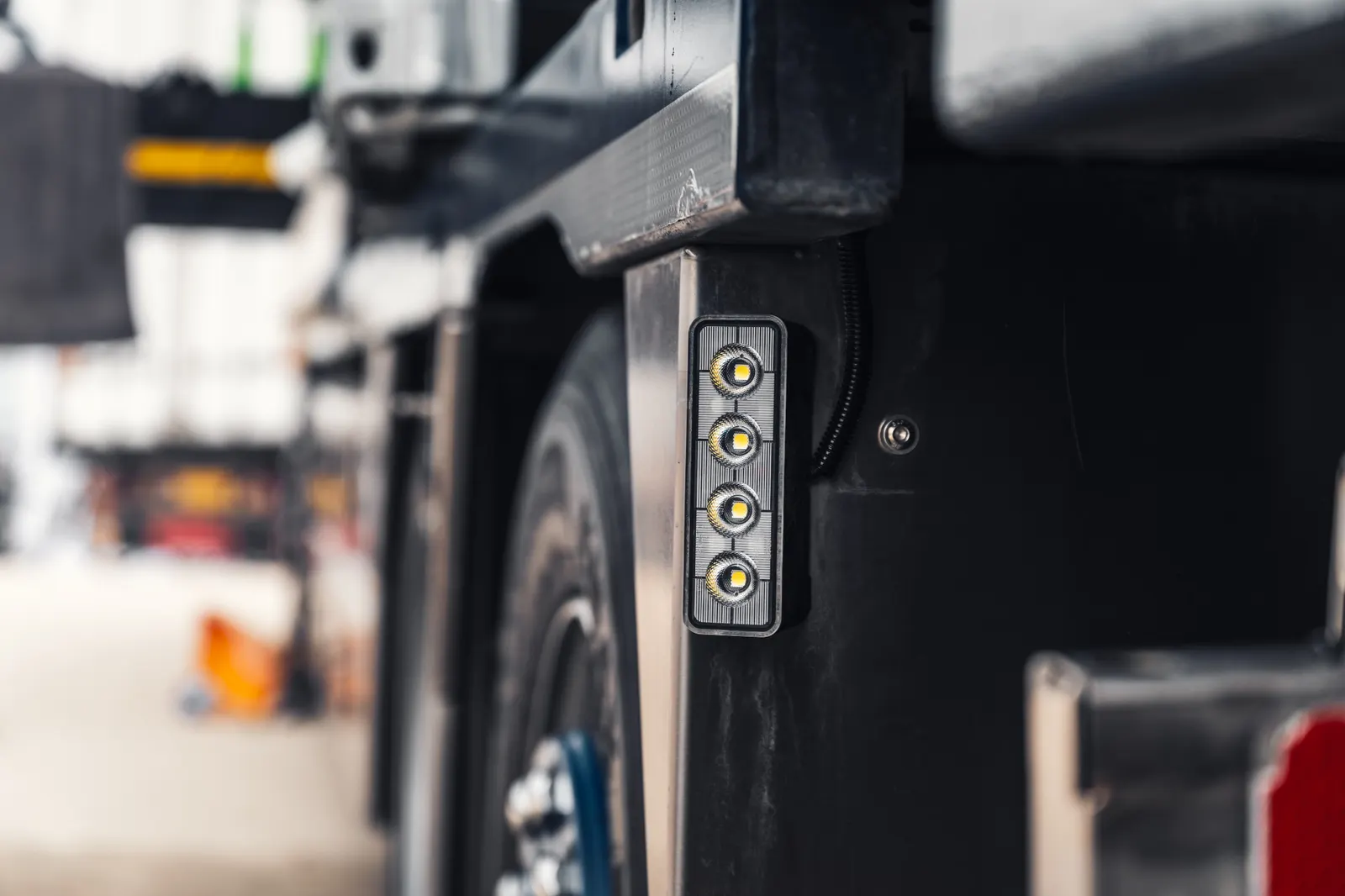

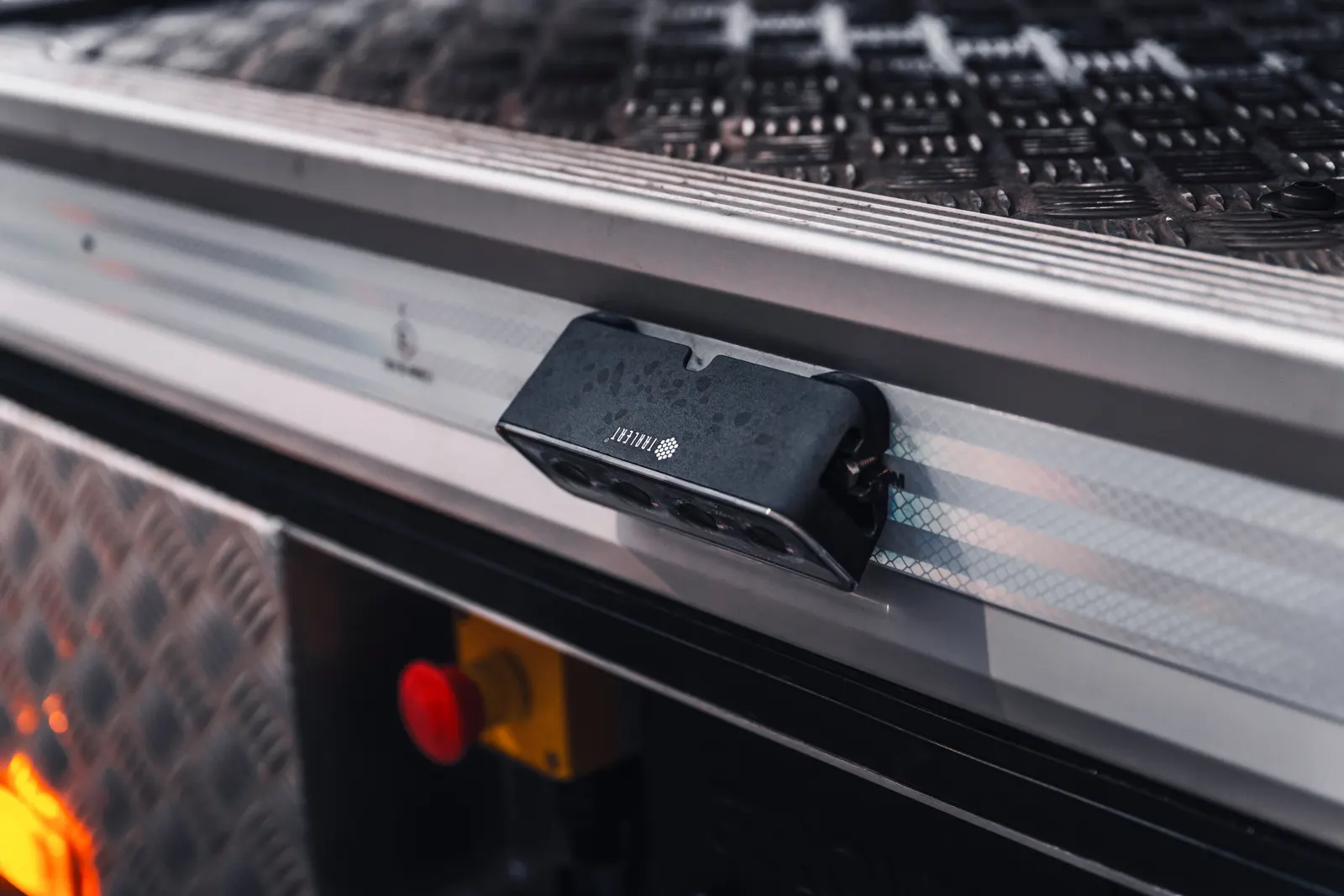

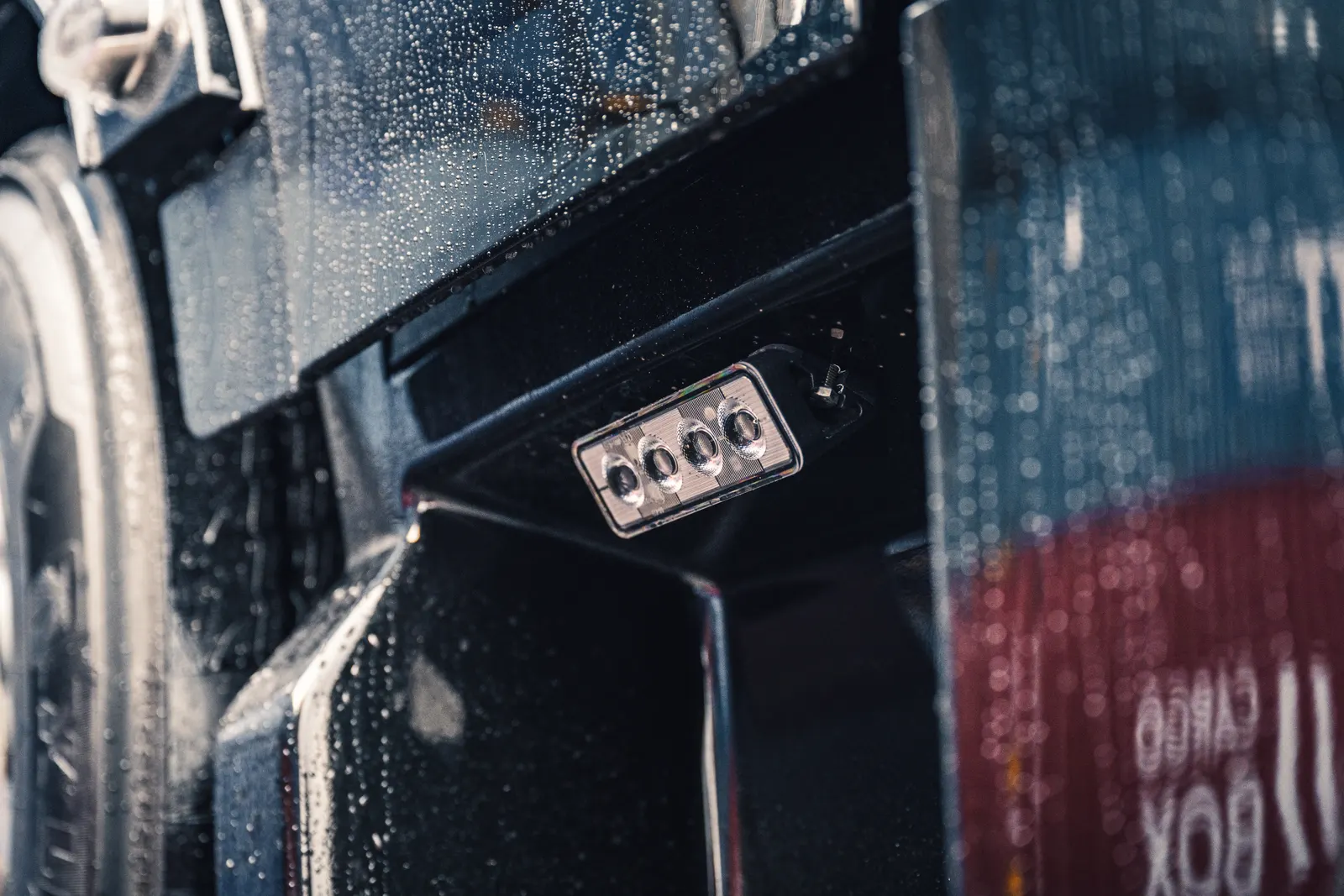

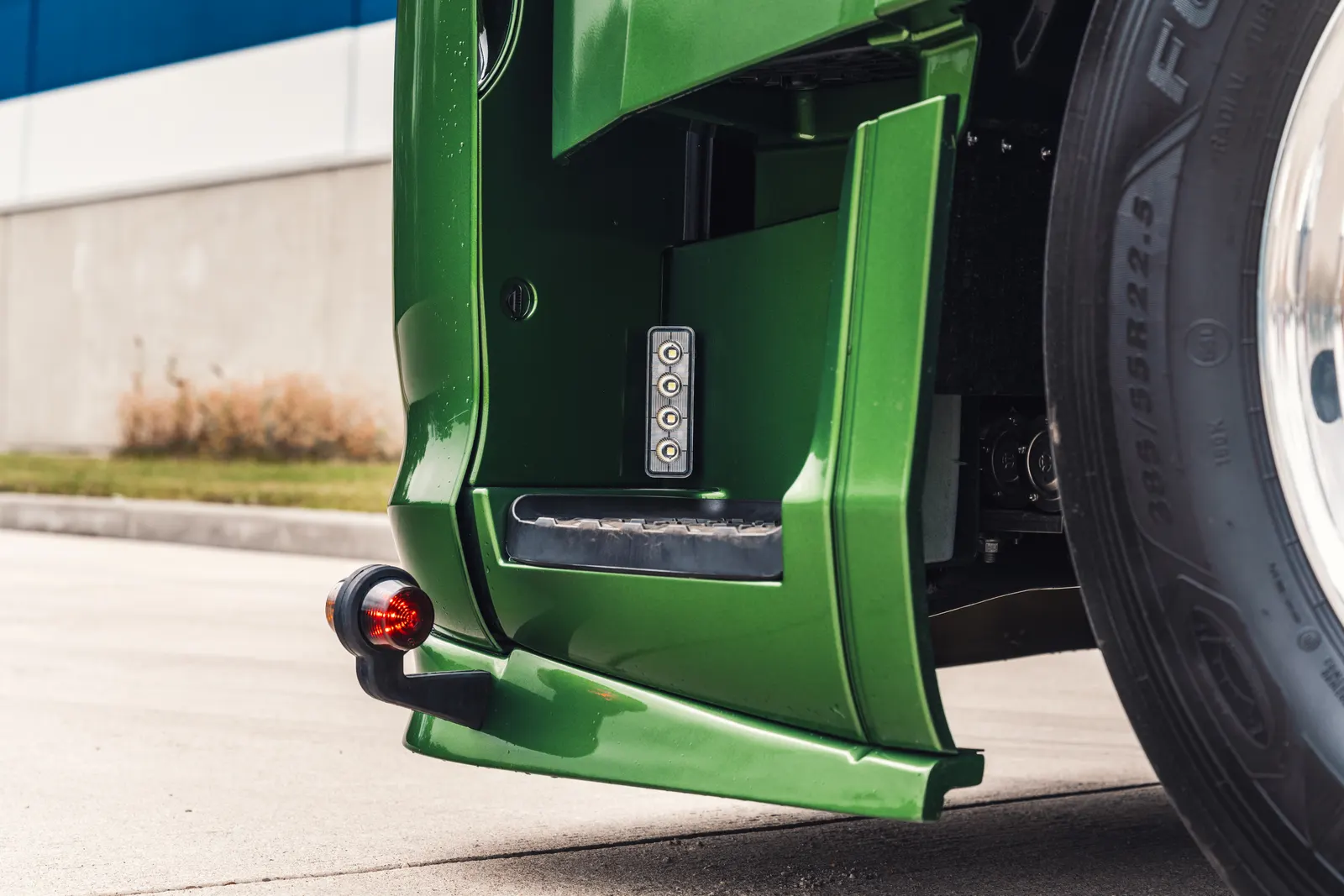

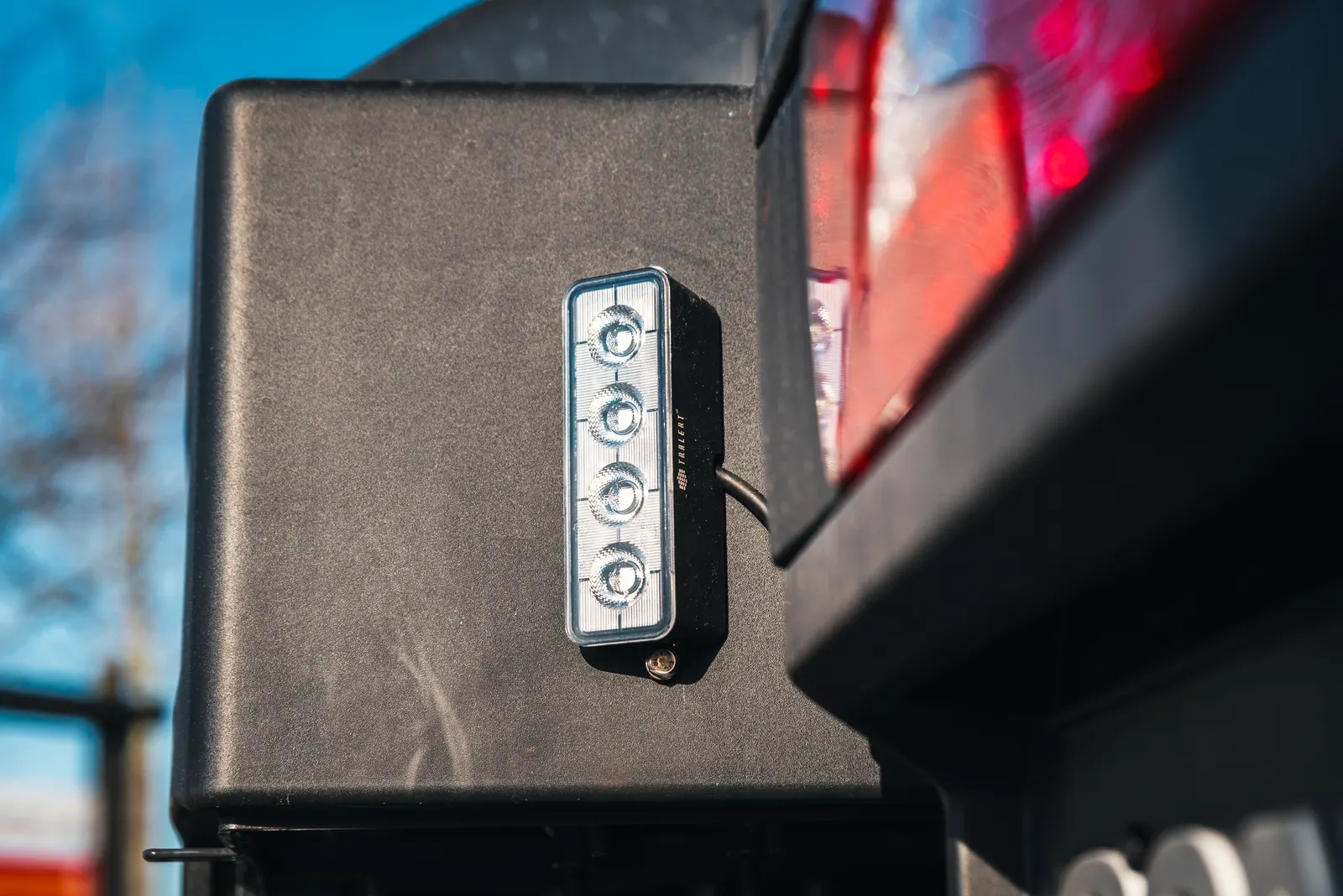

The TRALERT® WR-2428.1 from the Edge serie is a compact LED work light designed for use in a variety of work environments. This LED work light delivers a light output of 2,801 lm at an energy consumption of 25 W and operates within a voltage range of 9-36 V. The light image is suitable as a flood beam and can also serve as a reversing light, depending on the mounting position. The housing is made of aluminium, with an impact-resistant polycarbonate lens. Thanks to its protection rating IP69K, this LED work light is resistant to dust, mud and high-pressure cleaning. The light is certified to CE, ECE-R10, ECE-R23 and CISPR25 Class 1 standards, making it compatible with most commercial vehicle electrical systems. Connection is via a built-in 2-PIN Deutsch connector or a 200 cm cable with integrated Deutsch-connector. Plus points of this series: Extremely compact and flexibly mountable Powerful wide beam 5600 lumens Built-in DT-connector or cable with Deutsch-connector connector Two different mounting angles 35° and 48° See this lighting in action on the Volvo FH Aero

Specificaties

General

Voltage
9-36v
Wattage
24 Watt
Lumen
2801 lumens
IP rating
IP69K
Certifications
CE, CISPR25Class1, ECE-R10, ECE-R23
Warranty
2 jaar

Dimensions

Dimensions
131 x 42 x 56mm
Width
131mm
Depth
56mm
Height
42mm
Shape
Strip

Optics

Light pattern
Reversing lights
Light range
34 lux@ 10m / 1 lux@ 59m

Materials

Housing colour
Black
Housing material
Aluminium
Lens colour
Transparent
Lens material
Polycarbonate

Technical

Connector
2-PIN Deutsch connector
Cable length
200cm kabel
Mounting
Surface mounting

Other

num leds
4 x 6w LumiLEDs

Video

Documenten

  • pdfEN Edge Series leafletOpenen
  • pdfDatasheet WR 2428 NLOpenen
  • pdfNL Edge Series leafletOpenen
  • pdfDE Edge Series leafletOpenen
  • pdfFR Edge Series leafletOpenen
  • pdfIT Edge Series leafletOpenen
