LED ECE-R23 Reversing lights | 2600 lumen | 24 watts | IP69K | Deutsch | WR-2426
ECE
TRALERT®

LED ECE-R23 Reversing lights | 2600 lumen | 24 watts | IP69K | Deutsch | WR-2426

Artikelcode: WR-2426EAN: 8718801938263
VrachtwagenAanhangerBedrijfswagenAanhanger (klein)TractorGraafmachine4x4

€ 71,58

Prijs incl. btw · € 59,16 prijs excl. btw

Op voorraad

Bestel vóór 16:00 — verzending volgende werkdag

+ verzending vanaf € 7,50 · gratis vanaf € 350,00

Europese voorraad
Technisch advies
14 dagen retour
Korting vanaf 10 stuks

Doosvoordeel

Bestel een complete doos van dit product en bespaar direct.

Geldt per identiek artikel — kies dezelfde SKU. Doos direct vanuit voorraad geleverd.

Omschrijving

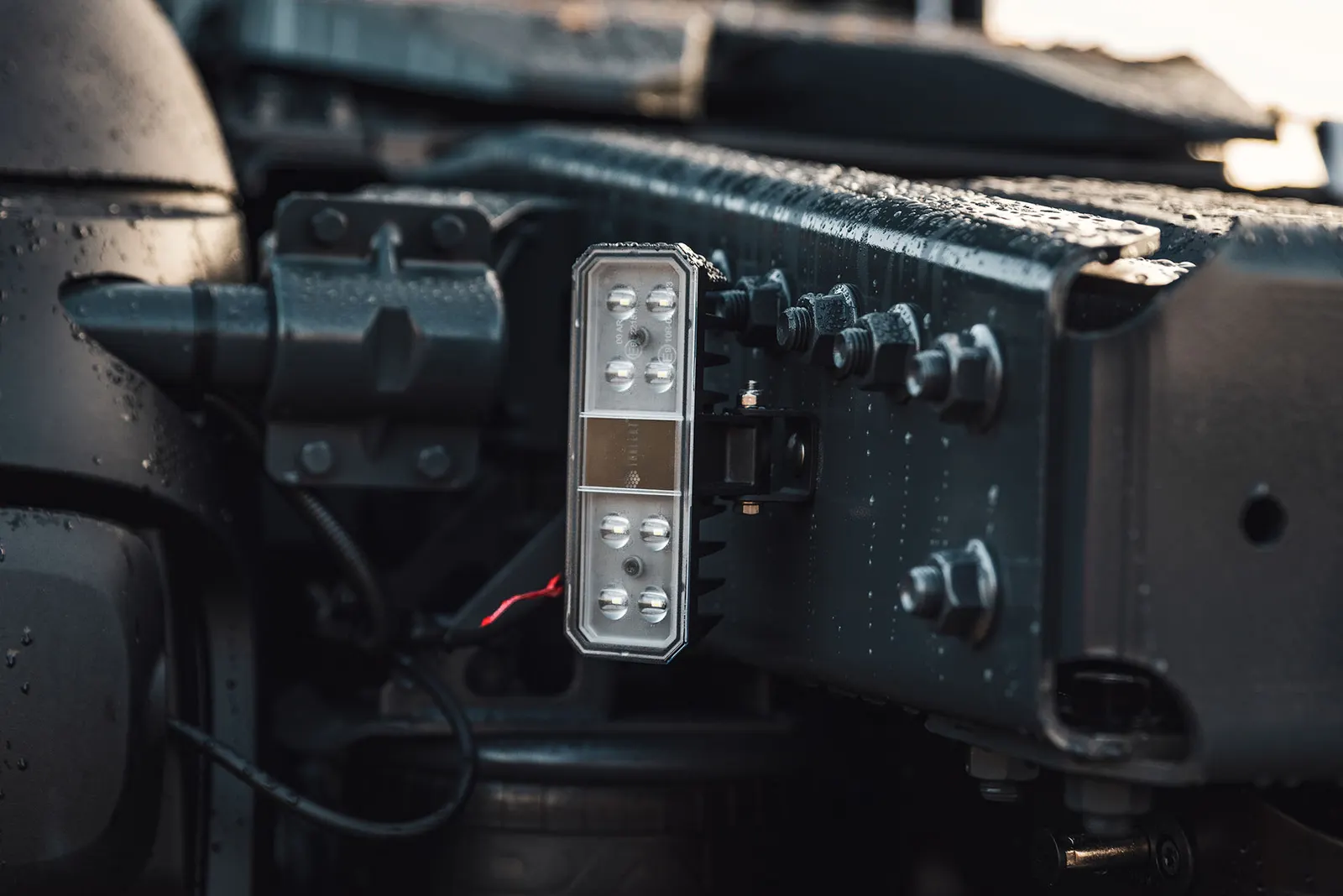

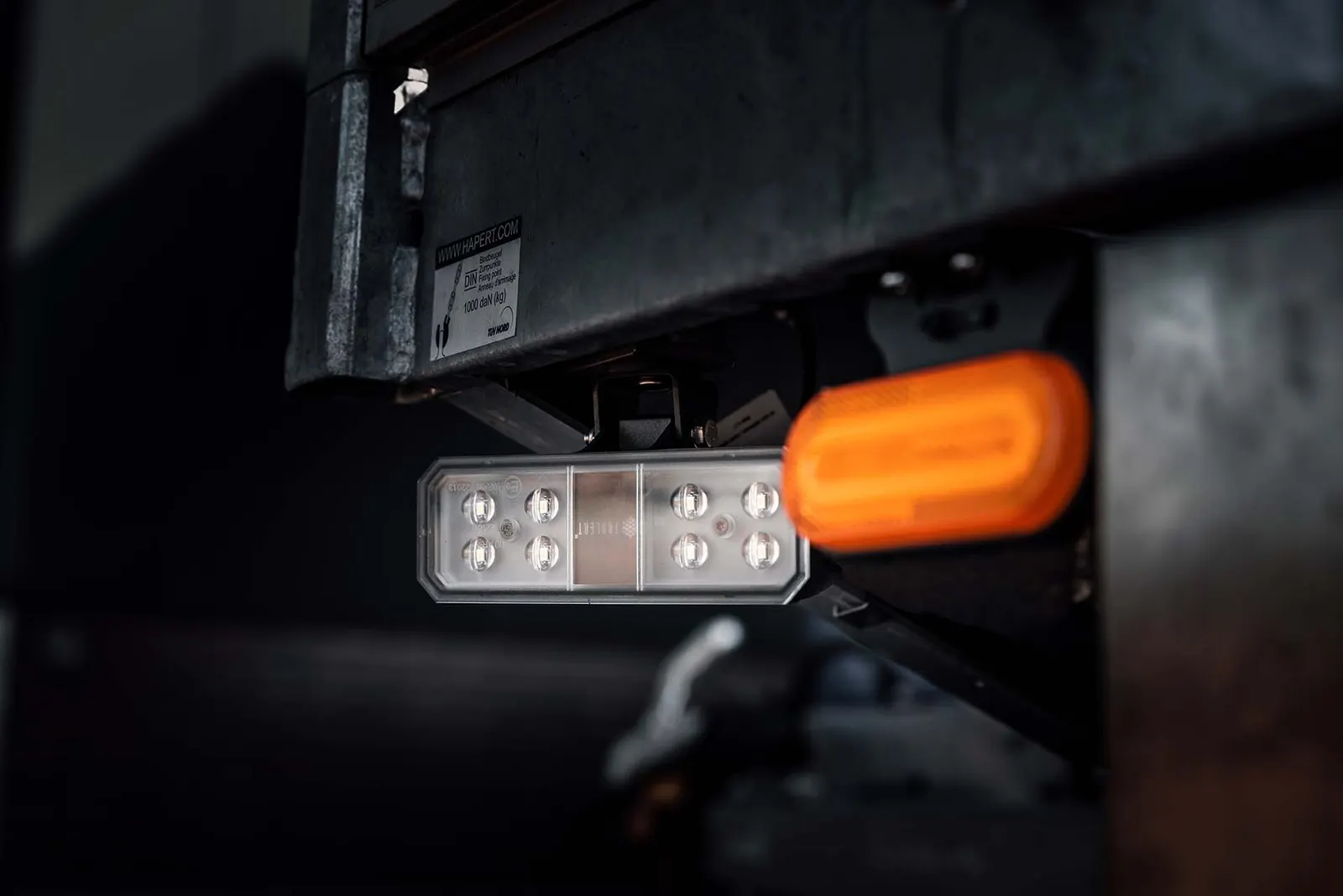

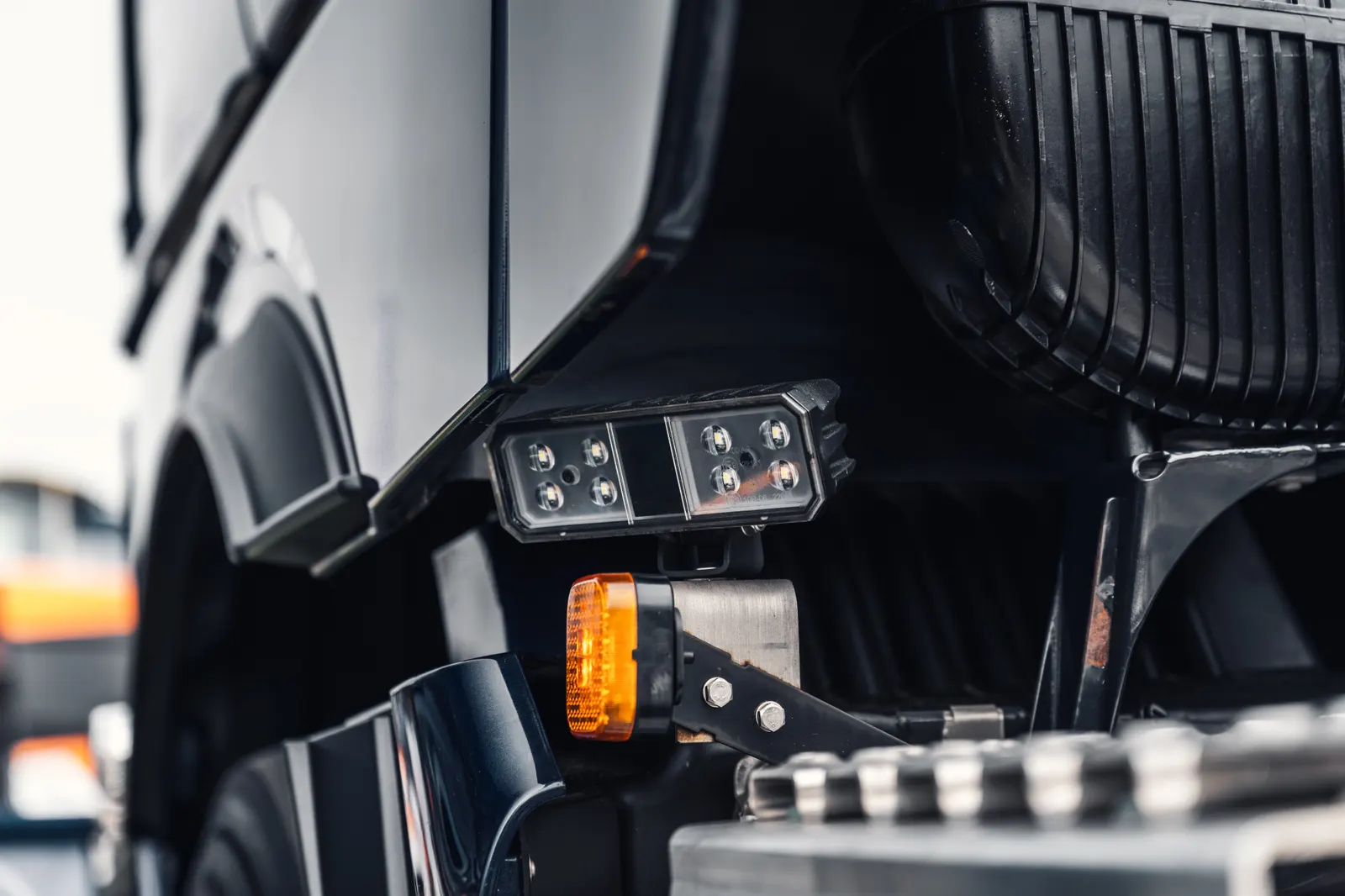

The TRALERT® WR-2426 from the Optimus serie is a compact LED work light designed for applications where a wide light image or reversing lights are required. Thanks to its voltage range of 9-36 V, this work light is suitable for both light and heavy vehicles within the industrial and agricultural sectors. The aluminium housing and polycarbonate lens guarantee mechanical resistance during intensive use. With a light output of 2,600 lm and a consumption of 25 W, this LED work light offers efficient lighting. The hermetically sealed construction (IP69K) protects against dust, water and high-pressure cleaning. Certifications such as CE, ECE-R10, ECE-R23 and CISPR25 Class 5 underline the electromagnetic compatibility and functional reliability of this light. Connection is via a 2-PIN's Deutsch connector with a cable length of 40 cm. Plus points of this series: - Heavy duty housing - Special Mini fish-eye LED technology for optimum light distribution - IP69K waterproof, suitable for all weather conditions - Full certification, ADR also available within the series

Specificaties

General

Voltage
9-36v
Wattage
24 Watt
Lumen
2600 lumens
IP rating
IP69K
Certifications
CE, CISPR25Class5, ECE-R10, ECE-R23
Warranty
2 jaar

Dimensions

Dimensions
150 x 50 x 48mm
Width
150mm
Depth
48mm
Height
50mm
Shape
Rectangular

Optics

Light pattern
Reversing lights
Light range
16 lux@ 10m / 1.00 lux@ 39m

Materials

Housing colour
Black
Housing material
Aluminium
Lens colour
Transparent
Lens material
Polycarbonate

Technical

Connector
2-PIN Deutsch connector
Cable length
40cm kabel
Mounting
Surface mounting

Other

num leds
8 x 3W ETI LEDs
height incl base
76, 6mm
