LED bar Nemesis XL 280 duo-color position lights 10-32v - 28.6cm - 7560lm | LD7-9075
ECE
TRALERT®

LED bar Nemesis XL 280 duo-color position lights 10-32v - 28.6cm - 7560lm | LD7-9075

Artikelcode: LD7-9075EAN: 8720364582005
VrachtwagenBedrijfswagenTractorGraafmachine4x4

€ 187,04

Prijs incl. btw · € 154,58 prijs excl. btw

Op voorraad

Bestel vóór 16:00 — verzending volgende werkdag

+ verzending vanaf € 7,50 · gratis vanaf € 350,00

Europese voorraad
Technisch advies
14 dagen retour
Korting vanaf 10 stuks

Omschrijving

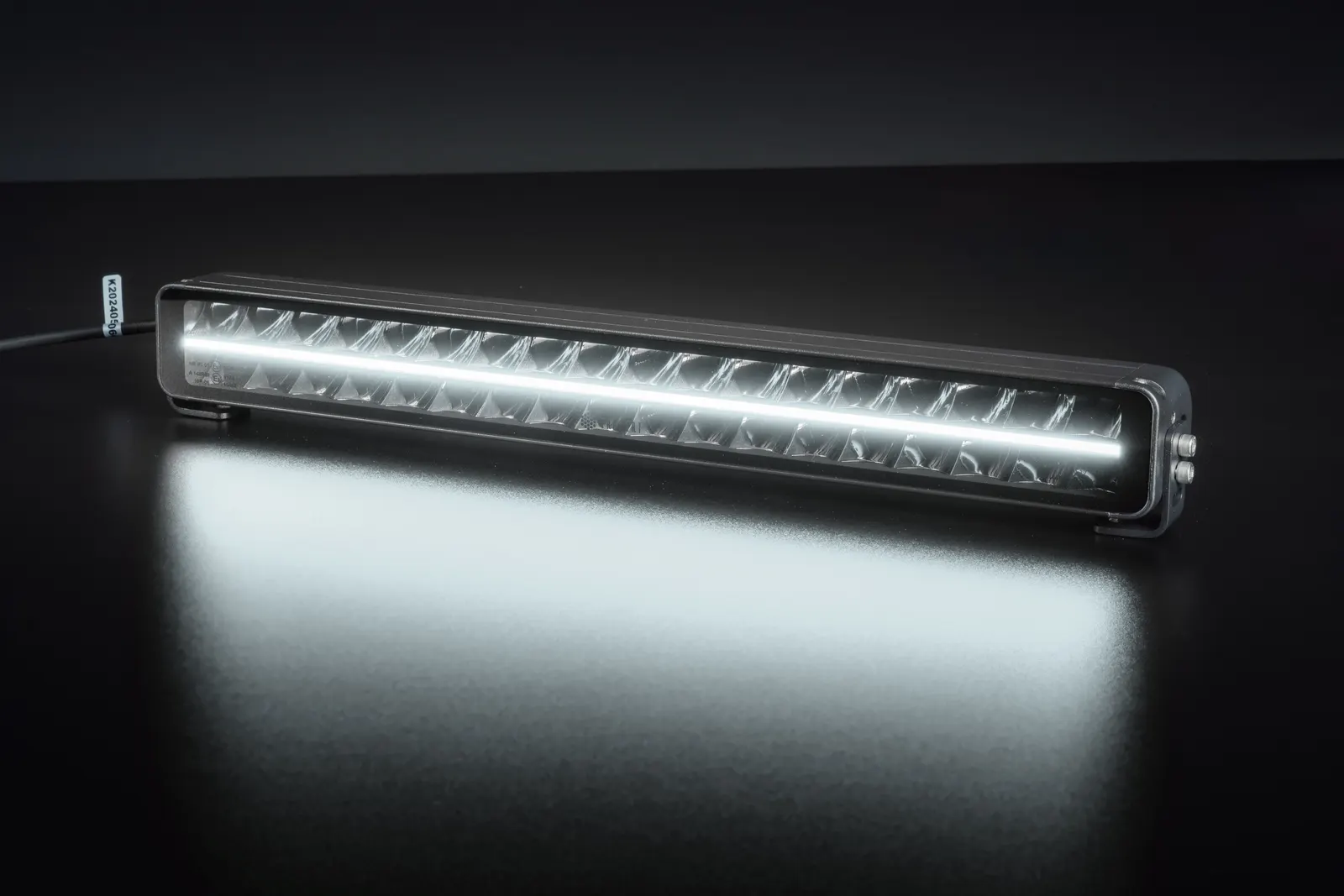

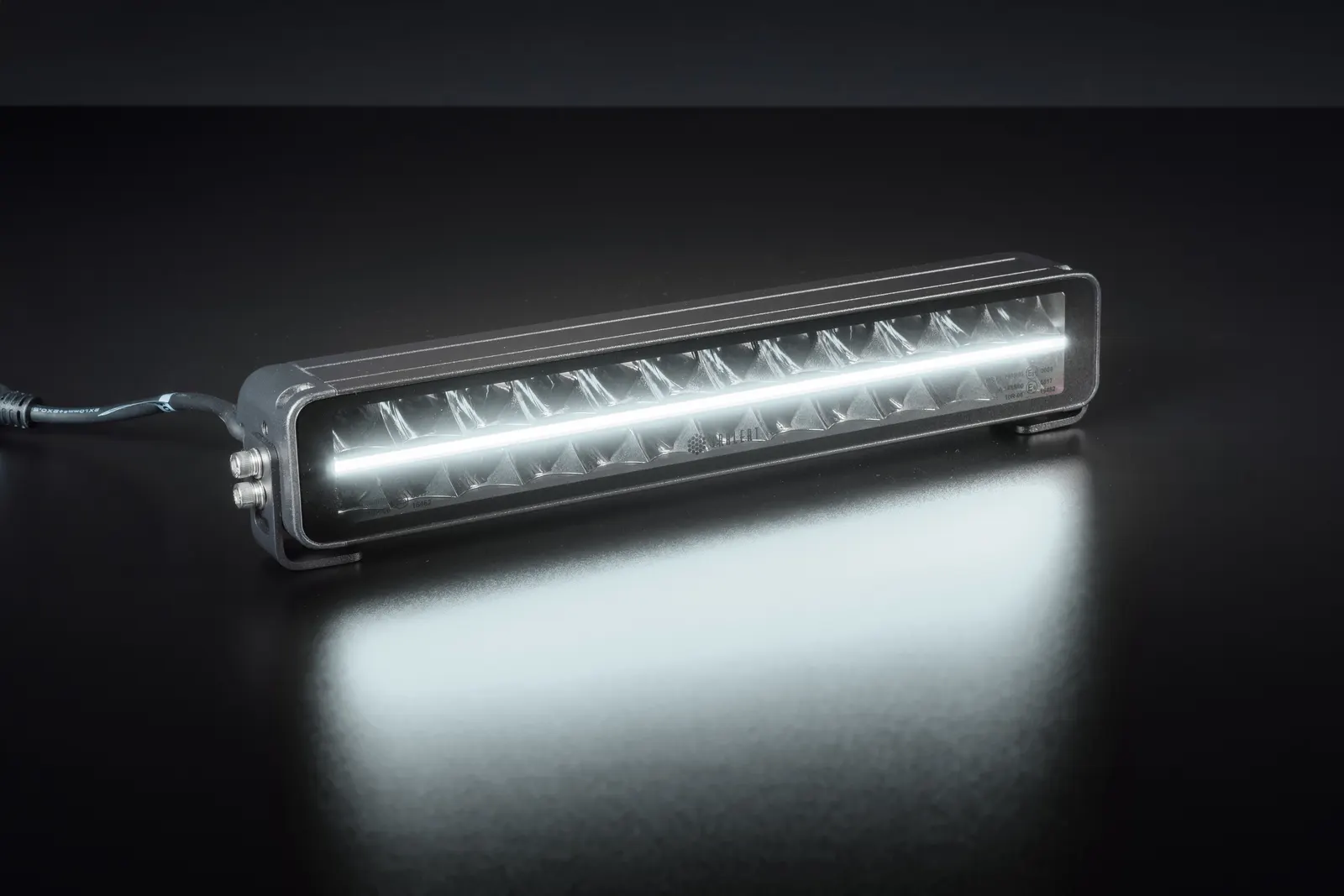

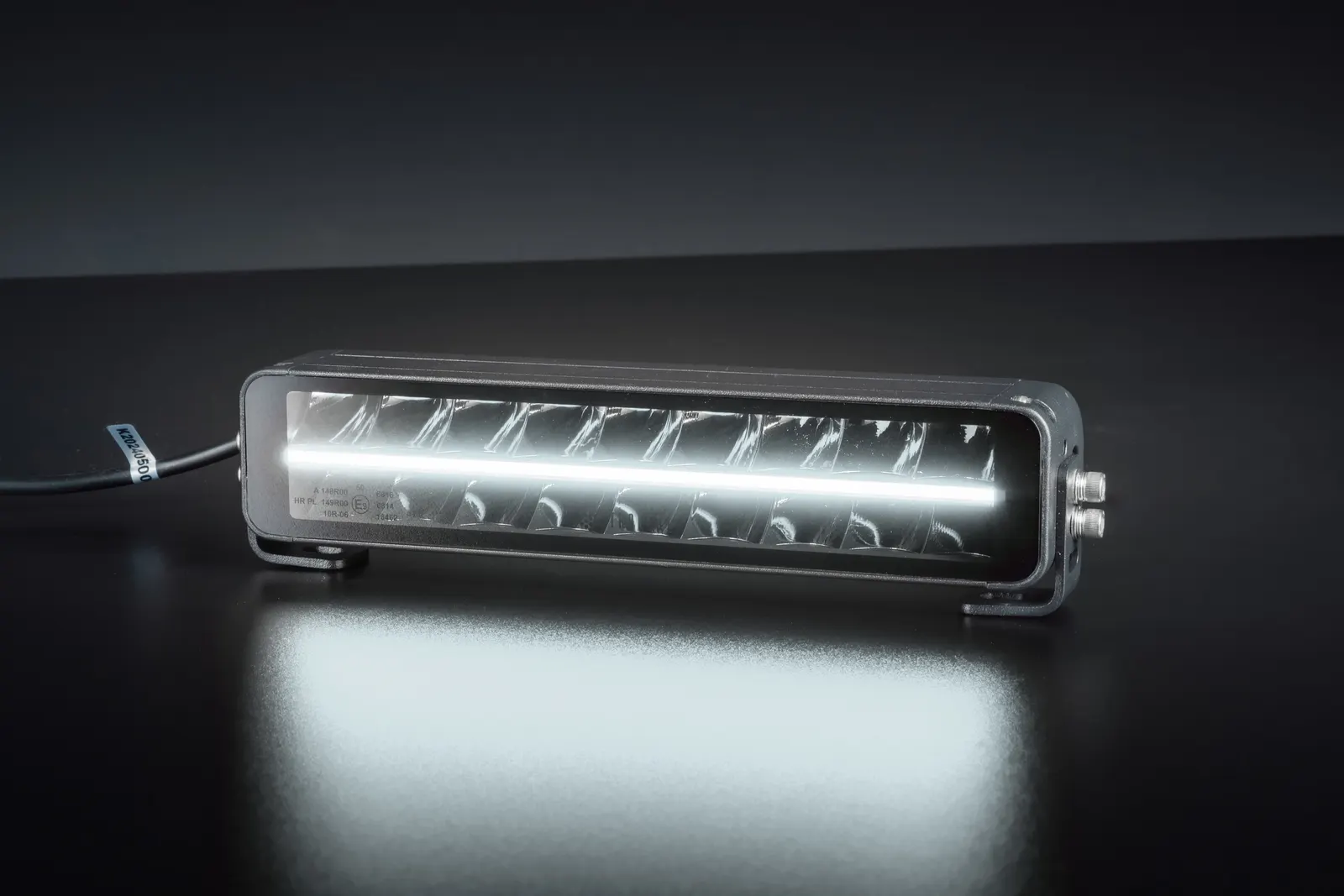

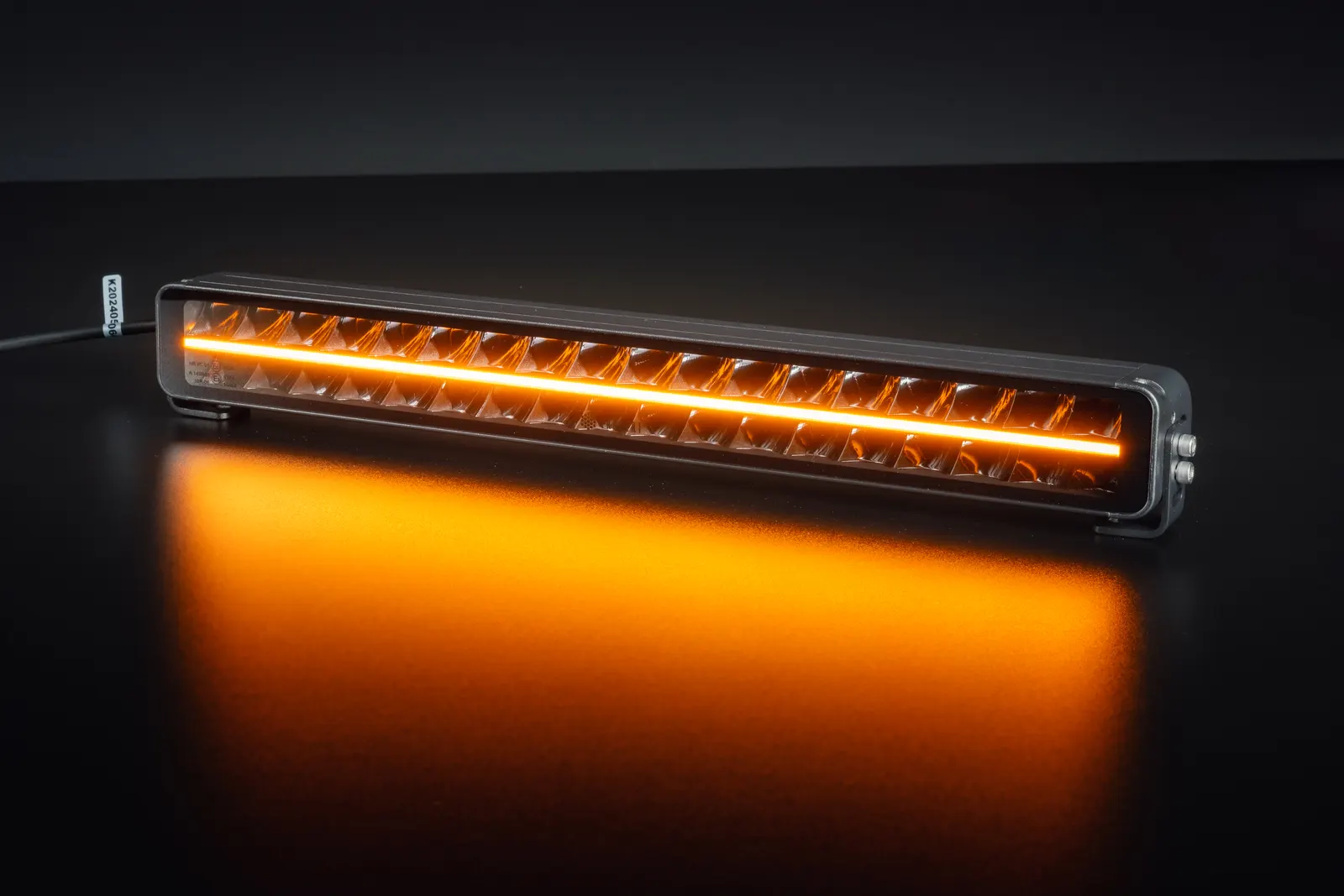

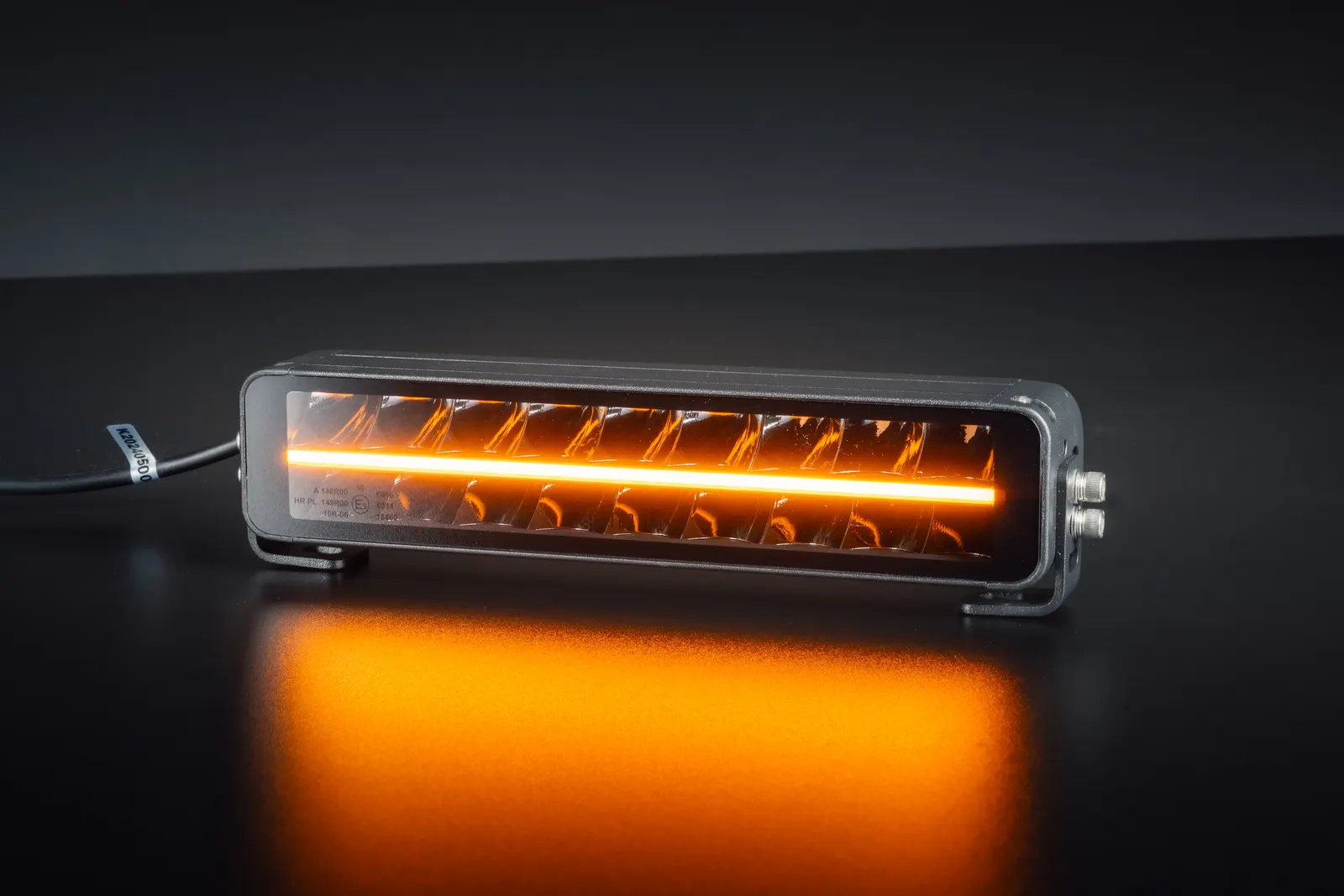

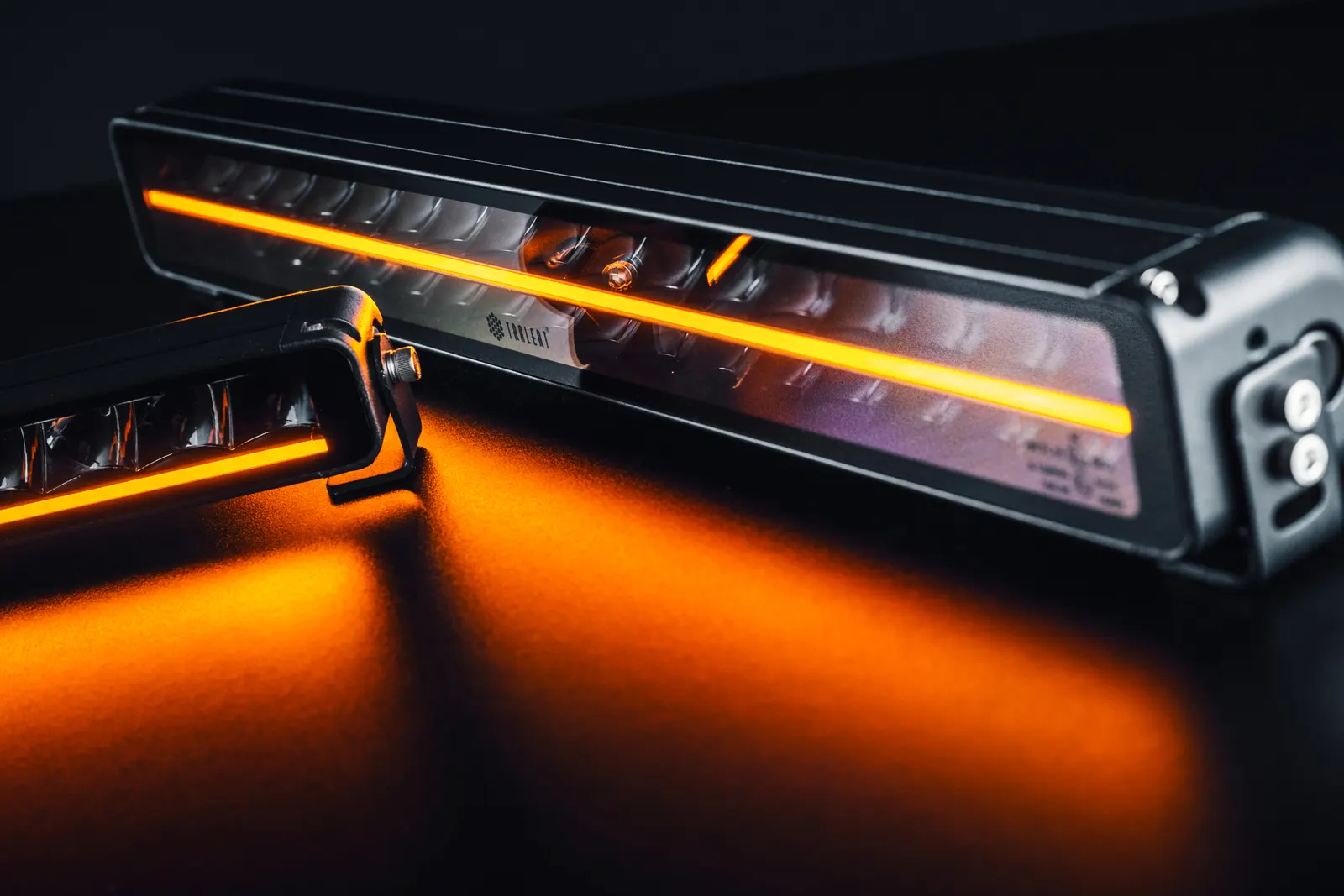

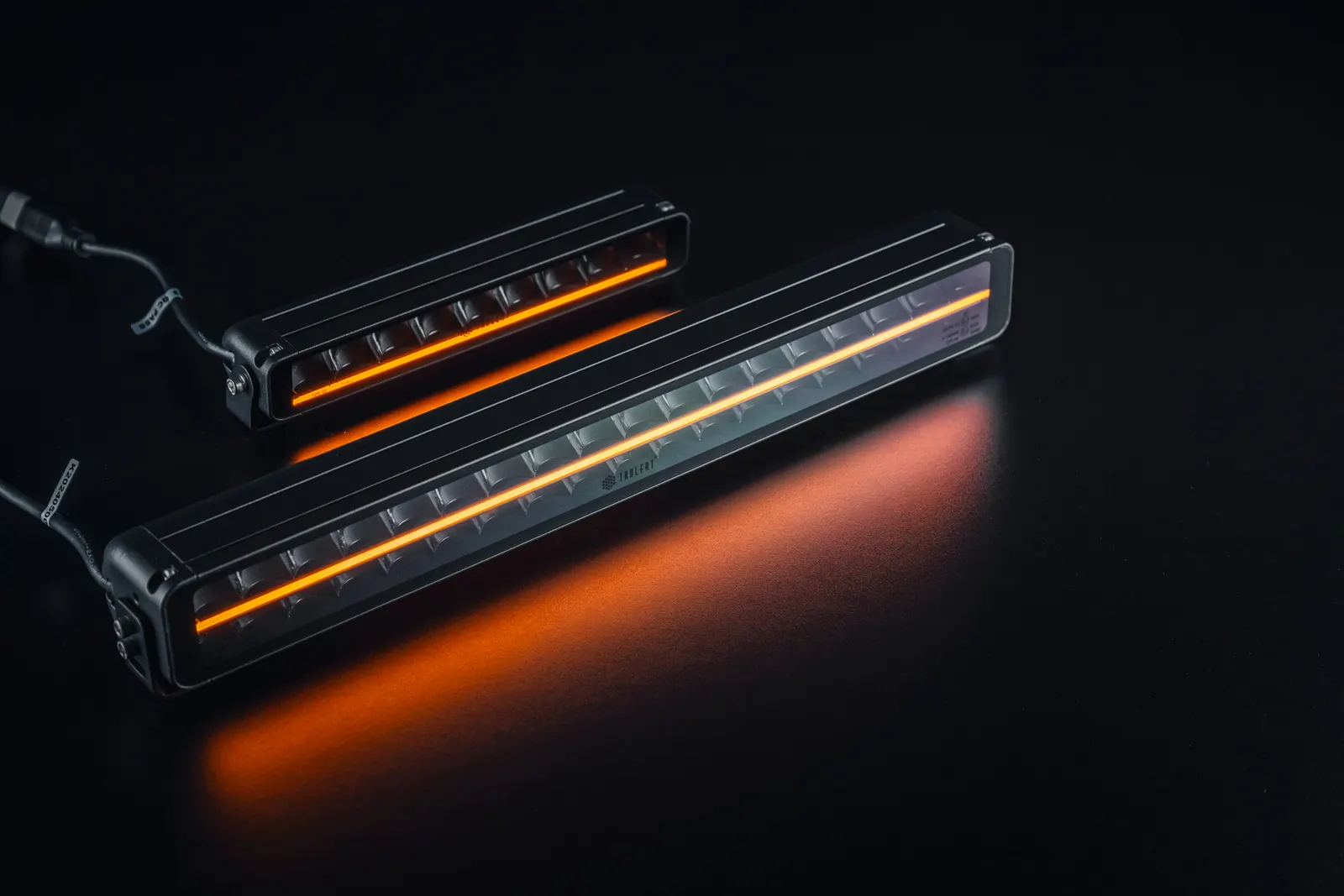

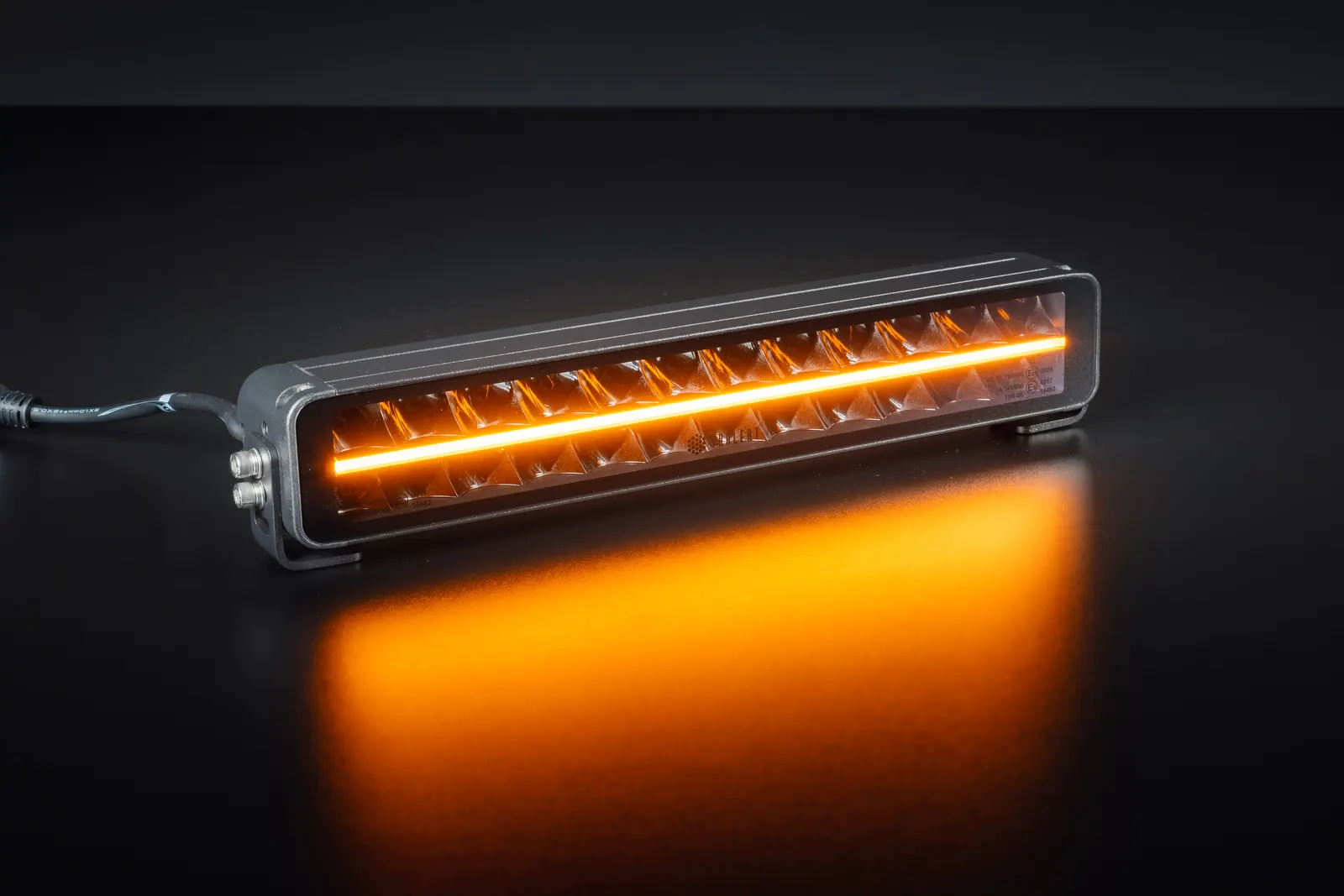

The TRALERT® LD7-serie LED bars are designed for applications where both functionality and flexibility in light colour are required. This LED bar delivers a driving beam light image with a light output of 7,560 lm and operates within a voltage range of 10-32 V. The driving position lights are available in both white and amber coloured versions, offering additional visibility and adaptability. The housing is made of aluminium and fitted with a polycarbonate lens, suitable for intensive use. Thanks to its IP69K classification, this LED bar is dust- and water-resistant to the highest level, allowing use in demanding conditions. The bar measures 283 x 62.5 x 70.1 mm and comes with a 300 cm cable with a Deutsch connector. ECE-R10 and ECE-R149 certifications ensure electromagnetic compatibility and compliance with lighting standards. Plus points of this series: - Double row of LEDs for double the power, unprecedented lighting performance - Unique dynamic start-up of the position lights - Choice of white and amber coloured position lights - Two mounting brackets included for the side and rear

Specificaties

General

Voltage
10-32v
Wattage
90 Watt
Lumen
7560 lumens
IP rating
IP69K
Certifications
CE, ECE-R10, ECE-R149
Warranty
2 jaar

Dimensions

Dimensions
283 x 62.5 x 70.1mm
Width
283mm
Depth
70, 1mm
Height
62, 5mm
Shape
Lightbar

Optics

Light colour
Amber, white
Light pattern
Driving Beam
Light range
60 Lux @ 60m / 1 Lux @ 450m
Flash function
No

Materials

Housing colour
Black
Housing material
Aluminium
Lens material
Polycarbonate

Technical

Connector
Deutsch connector
Cable length
300cm kabel
Mounting bracket
Incl. mounting bracket
Reference number
40

Other

num leds
18 x 5W LEDs
height incl base
63, 8mm

Video

Documenten

  • pdfEN LD7 9075 datasheetOpenen
  • pdfEN Nemesis Series leafletOpenen
  • pdfNL LD7 9075 datasheetOpenen
  • pdfNL Nemesis Series leafletOpenen
  • pdfDE LD7 9075 datasheetOpenen
  • pdfDE Nemesis Series leafletOpenen
  • pdfFR LD7 9075 datasheetOpenen
  • pdfFR Nemesis Series leafletOpenen
  • pdfIT LD7 9075 datasheetOpenen
  • pdfIT Nemesis Series leafletOpenen
