LED bar Nemesis 530 duo-color position lights 10-32v - 53.4cm - 7560lm | LD6-9075
ECE
TRALERT®

LED bar Nemesis 530 duo-color position lights 10-32v - 53.4cm - 7560lm | LD6-9075

Artikelcode: LD6-9075EAN: 8720364581985
VrachtwagenBedrijfswagenTractorGraafmachine4x4

€ 218,30

Prijs incl. btw · € 180,41 prijs excl. btw

Op voorraad

Bestel vóór 16:00 — verzending volgende werkdag

+ verzending vanaf € 7,50 · gratis vanaf € 350,00

Europese voorraad
Technisch advies
14 dagen retour
Korting vanaf 10 stuks

Omschrijving

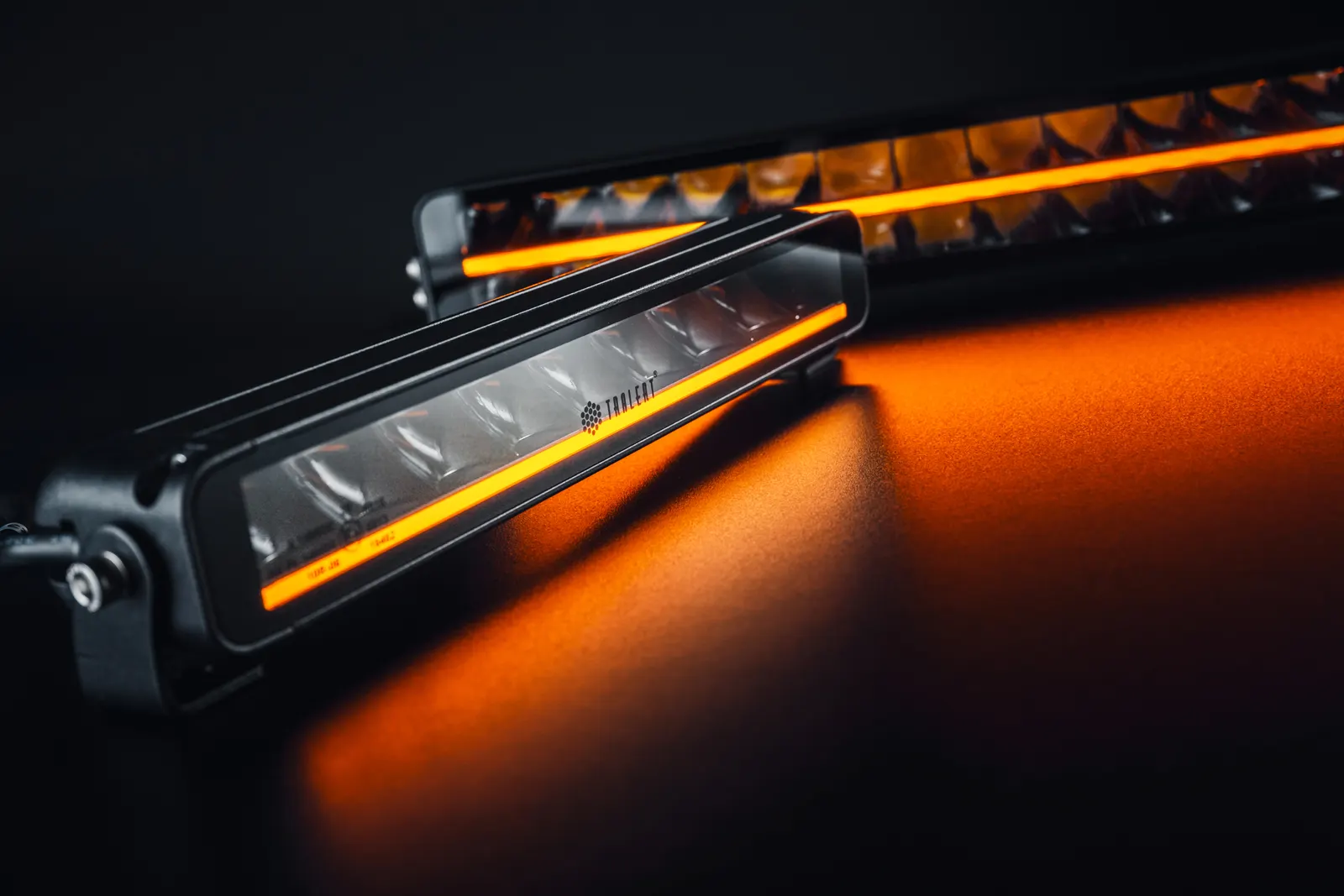

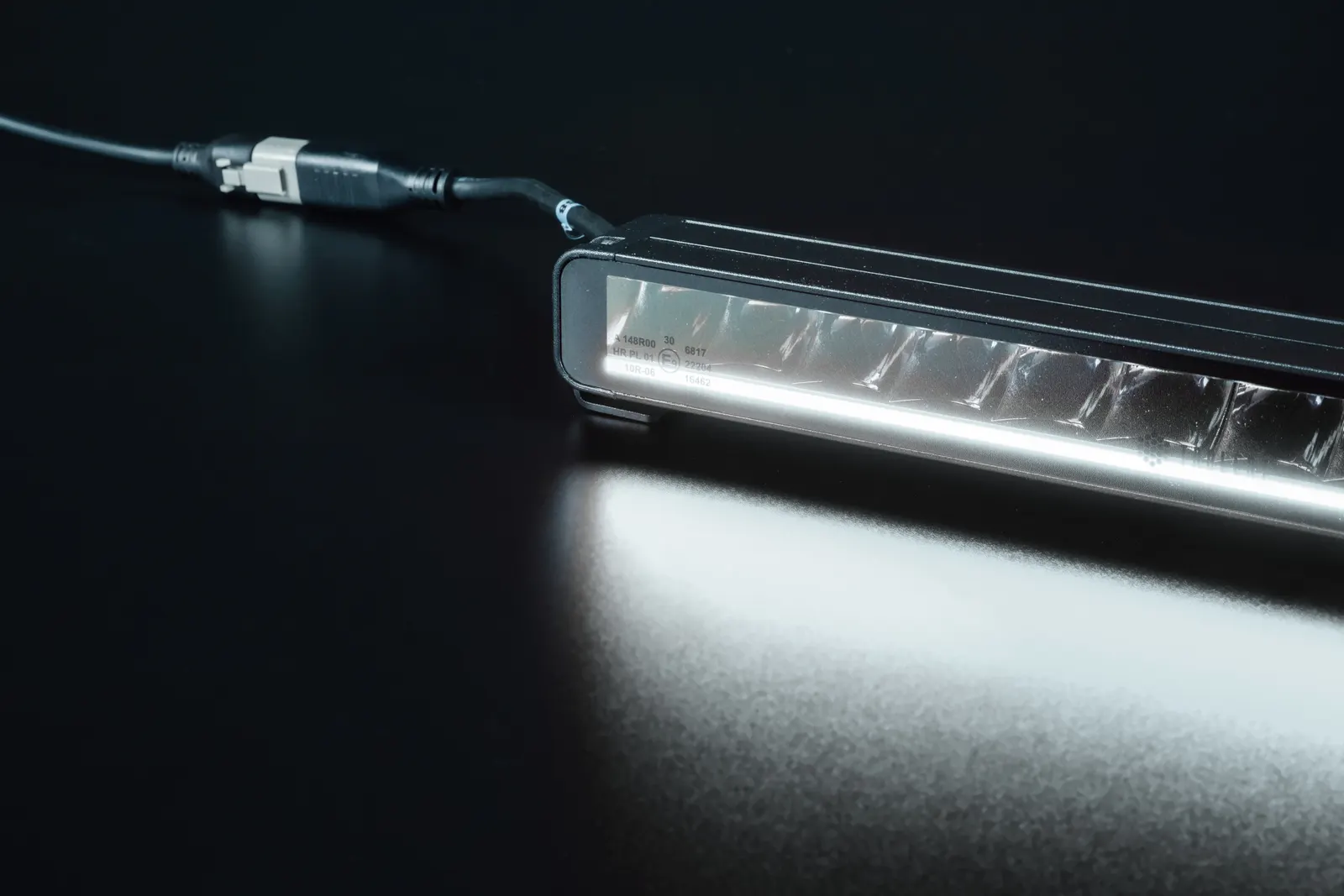

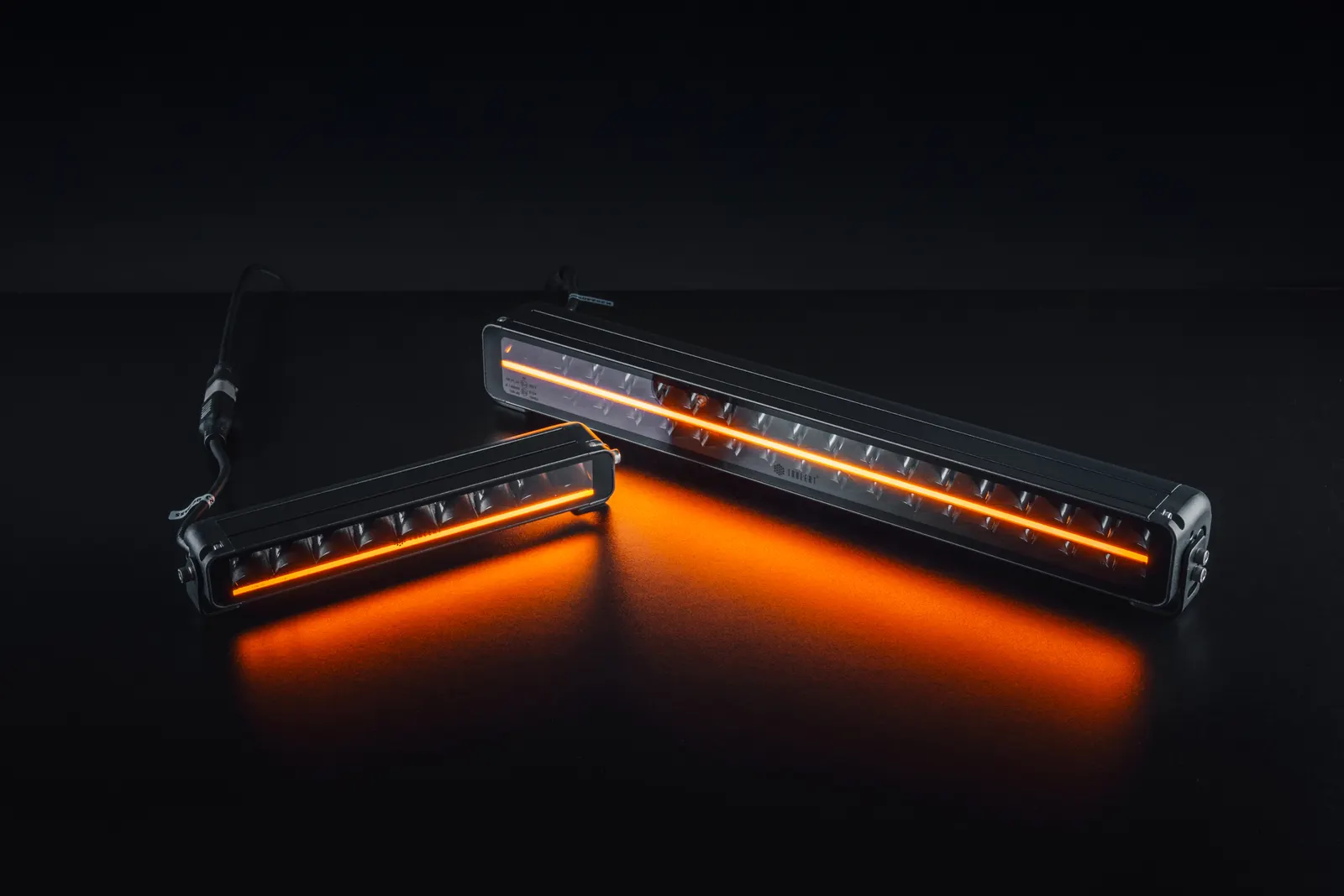

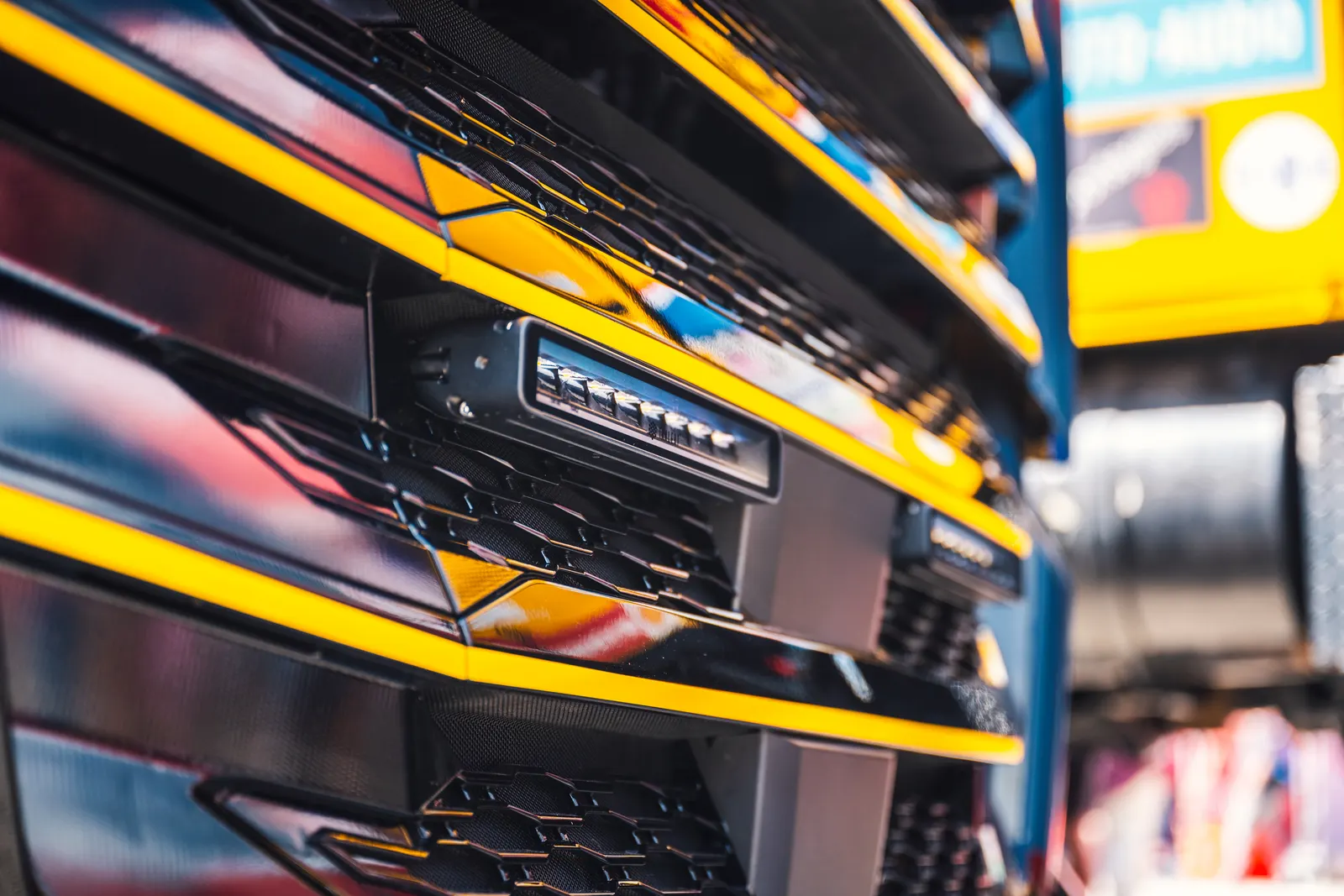

The TRALERT® LD6-serie LED bars are designed for applications where visibility and durability are essential, such as commercial vehicles, transport and off-road applications. Featuring a driving beam light image, this LED bar offers a combination of white and amber coloured position lights. With its wide voltage range of 10-32 V, it is suitable for both 12 V and 24 V systems. The aluminium housing and polycarbonate lens offer protection against mechanical influences and weather conditions. With an IP69K rating, this LED bar is completely dust-proof and protected against high-pressure cleaning. The light output is 7,560 lm, delivered by powerful LEDs. Certification to CE, ECE R10 and ECE R149 ensures electromagnetic compatibility and light performance in accordance with European regulations. The product features a built-in Deutsch-connector and comes with a 300 cm cable and mounting brackets for side and rear mounting. Plus points of this series: - Powerful LEDs resulting in excellent lighting performance - Unique dynamic start-up of the position lights - Choice of white and amber coloured position lights - Two mounting brackets included for the side and rear Need help in making your choice? Then read the practical selection guide for LED lightbars.

Specificaties

General

Voltage
10-32v
Wattage
90 Watt
Lumen
7560 lumens
IP rating
IP69K
Certifications
CE, ECE-R10, ECE-R149
Warranty
2 jaar

Dimensions

Dimensions
534 x 42 x 58mm
Width
534mm
Depth
58mm
Height
42mm
Shape
Lightbar

Optics

Light colour
Amber, white
Light pattern
Driving Beam
Light range
45 Lux @ 75m / 1 Lux @ 360m
Flash function
No

Materials

Housing colour
Black
Housing material
Aluminium
Lens material
Polycarbonate

Technical

Connector
Deutsch connector
Cable length
300cm kabel
Mounting bracket
Incl. mounting bracket
Reference number
37, 5

Other

num leds
18 x 5W LEDs
height incl base
54 / 56mm

Video

Documenten

  • pdfEN LD6 9075 datasheetOpenen
  • pdfEN Nemesis Series leafletOpenen
  • pdfNL LD6 9075 datasheetOpenen
  • pdfNL Nemesis Series leafletOpenen
  • pdfDE LD6 9075 datasheetOpenen
  • pdfDE Nemesis Series leafletOpenen
  • pdfFR LD6 9075 datasheetOpenen
  • pdfFR Nemesis Series leafletOpenen
  • pdfIT LD6 9075 datasheetOpenen
  • pdfIT Nemesis Series leafletOpenen
